High Density Feedthrough Assemblies for Thermocouple, RTD or Equipment Wire Applications

view larger image

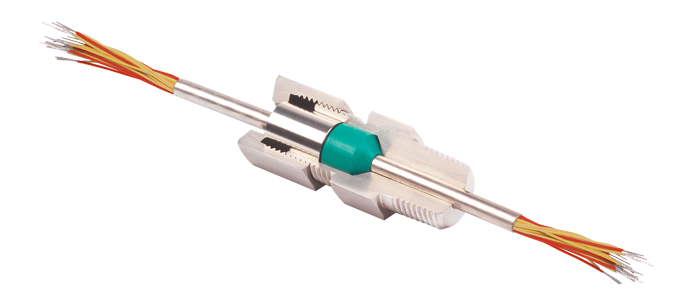

Our feedthrough assemblies comprise a high density wire feedthrough sealed with a sealing gland. A PFA lined stainless steel tube is swaged over 12, 24, 40 or 60 bundled solid 0.020” diameter, PTFE insulated Thermocouple or Copper conductors to make the high density feedthrough. The swaged tube is then mounted in a sealing gland. Assemblies are supplied with 23” of wire on each side of the feedthrough, however, longer leads can be made to order)
  • Continuous wire feedthroughs for thermocouples types K, T, J or N (others thermocouple types available on request), 2,3 or 4 wire RTD's as well as other low voltage signalling requiring copper leads
  • 12, 24, 40 or 60 bundled solid 0.020” diameter, PTFE insulated Thermocouple or Copper conductors
  • No epoxy or potting required
  • Feedthrough tube diameters are: 0.187”: 6 T/C's or 4 three wire RTD's or 12 equipment wires 0.250”: 12 T/C's or 8 three wire RTD's or 24 equipment wires 0.315”: 20 T/C's or 13 three wire RTD's or 40 equipment wires 0.393”: 30 T/C's or 20 three wire RTD's or 60 equipment wires
  • Offered as standard with a PTFE Sealant, however, other sealants including Neoprene, Viton and Lava are also available
  • Suited for pressure applications up to 5000 psi @70ºF
  • Leak rate: 1x10-9 scc/sec, Helium @20ºC, 1 Atm supplied
  • Ideal for use in vacuum applications and are rated to 6.67 x 10-4 Pa (6.67 x 10-6 mbar) for assemblies with Neoprene, Viton or PFA® sealants. Lava sealants are not recommended for use in vacuum applications
  • Tube length is typically 3.75” to 4.25”, but can be made to suit customers requirements
  • All wires are marked on each side of the feedthrough for identification
  • A full custom build assembly service available on request where the following options can be chosen to order. Other thermocouple types, alternative sealants such as Neoprene, Viton or Lava, alternative thread sizes, differing tube lengths and lead lengths, a specific number of wires as well as a mixture of thermocouple and equipment wires within the same assembly
  • Temperature rated -40ºF to +260ºF
  • Electrically rated 100V DC @ 500 Ma
  • 316L Body (and seat where applicable). Follower and cap in 303 or 304
The following types are available:
For use with Type K Thermocouples
Order Code Description 1 - 9 10 - 19 20 - 50 Buy
945-504 6 pairs - 1/4" NPT – 2900 psi $491.00 $448.00 $410.00 Add
945-507 12 pairs - 1/4" NPT – 2100 psi $563.00 $514.00 $470.00 Add
945-510 20 pairs - 1/2" NPT – 2100 psi $693.00 $632.00 $578.00 Add
945-513 30 pairs - 1/2" NPT – 1400 psi $823.00 $749.00 $686.00 Add
For use with Type T Thermocouples
Order Code Description 1 - 9 10 - 19 20 - 50 Buy
945-526 6 pairs - 1/4" NPT – 2900 psi $491.00 $448.00 $410.00 Add
945-529 12 pairs - 1/4" NPT – 2100 psi $563.00 $514.00 $470.00 Add
945-532 20 pairs - 1/2" NPT – 2100 psi $693.00 $632.00 $578.00 Add
945-535 30 pairs - 1/2" NPT – 1400 psi $823.00 $749.00 $686.00 Add
For use with Type J Thermocouples
Order Code Description 1 - 9 10 - 19 20 - 50 Buy
945-552 6 pairs - 1/4" NPT – 2900 psi $491.00 $448.00 $410.00 Add
945-555 12 pairs - 1/4" NPT – 2100 psi $563.00 $514.00 $470.00 Add
945-558 20 pairs - 1/2" NPT – 2100 psi $693.00 $632.00 $578.00 Add
945-561 30 pairs - 1/2" NPT – 1400 psi $823.00 $749.00 $686.00 Add
for use with type N thermocouples
Order Code Description 1 - 9 10 - 19 20 - 50 Buy
945-585 6 pairs - 1/4" NPT – 2900 psi $491.00 $448.00 $410.00 Add
945-588 12 pairs - 1/4" NPT – 2100 psi $563.00 $514.00 $470.00 Add
945-591 20 pairs - 1/2" NPT – 2100 psi $693.00 $632.00 $578.00 Add
945-594 30 pairs - 1/2" NPT – 1400 psi $823.00 $749.00 $686.00 Add
For use with RTD's or Equipment Wiring
Order Code Description 1 - 9 10 - 19 20 - 50 Buy
945-572 12 cores (or 4 x 3 wire RTD's) - 1/4" NPT – 2900 psi $491.00 $448.00 $410.00 Add
945-575 24 cores (or 8 x 3 wire RTD's) - 1/4" NPT – 2100 psi $563.00 $514.00 $470.00 Add
945-578 40 cores (or 13 x 3 wire RTD's) - 1/2" NPT – 2100 psi $693.00 $632.00 $578.00 Add
945-581 60 cores (or 20 x 3 wire RTD's) - 1/2" NPT – 1400 psi $823.00 $749.00 $686.00 Add
