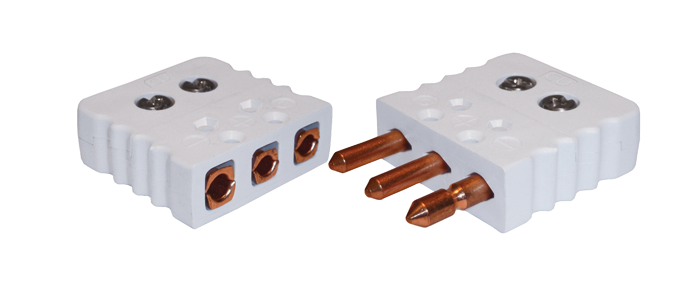

Standard RTD Connectors
These round pin standard connectors are ideal for connecting RTD sensors and RTD extension cable to each other. The pins are polarized to avoid an incorrect connection and the connector body is additionally marked for polarity. They are rated for use between -58ºF and +410ºF (-50ºC and +210ºC).
- For connection to 3 wire sensors or RTD extension cable
- Body: Thermoplastic compound rated -58ºF to +410ºF (-50ºC to +210ºC)
- Suitable for conductors up to 0.078” dia wire diameters
- Color coded - White
- Dimensions: Plug 1.38” x 1.44” x 0.5” (LxWxD) with 0.59” long round pins.
Jack 1.38” x 1.44” x 0.5” (LxWxD)
- Manufactured by the TC Group
The following types are available:
