Miniature RTD Connectors

view larger image

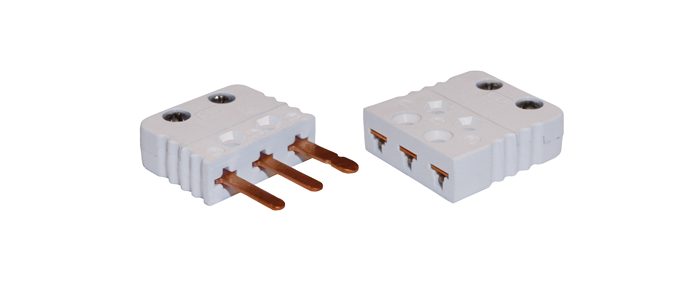

These flat pin miniature connectors are ideal for connecting RTD sensors and RTD extension cable to each other. The three pins are polarized to avoid an incorrect connection and the connector body is additionally marked for polarity. They are rated for use between -58ºF and +410ºF (-50ºC and +210ºC). In addition to the plug and jack, a panel jack is available on request along with matching anodized aluminum connector panels. Weatherproof silicone rubber boots are also available for added protection in moist environments.
  • For connection to 3 wire sensors or cable
  • Body: Thermoplastic compound rated -58ºF to +410ºF (-50ºC to +210ºC)
  • Suitable for wires smaller than 22 AWG (0.025” dia)
  • Color coded - White
  • Dimensions: Plug 0.75” x 0.94” x 0.31” (LxWxD) with 0.5” long pins Jack 1.0” x 0.94” x 0.31” (LxWxD) Panel jack as per jack but with front bezel and clip for attachment to panel
  • Manufactured by the TC Group
The following types are available:
Miniature RTD Connectors
Order Code Description 1 - 9 10 - 24 25 - 49 Buy
733-130 Miniature RTD Plug $6.50 $6.10 $5.60 Add
733-132 Miniature RTD Jack $6.50 $6.10 $5.60 Add
524-780 Miniature Cable Grommet (ID 0.019") $0.60 $0.55 $0.50 Add
524-784 Miniature Cable Grommet (ID 0.039") $0.60 $0.55 $0.50 Add
524-786 Miniature Cable Grommet (ID 0.018") $0.60 $0.55 $0.50 Add
524-790 Miniature Cable Clamp (One per connector) $2.40 $2.20 $2.10 Add
724-802 Miniature Silicon Rubber Boot (One per connector) $4.70 $4.40 $3.90 Add
