Standard Duplex Thermocouple Connectors

view larger image

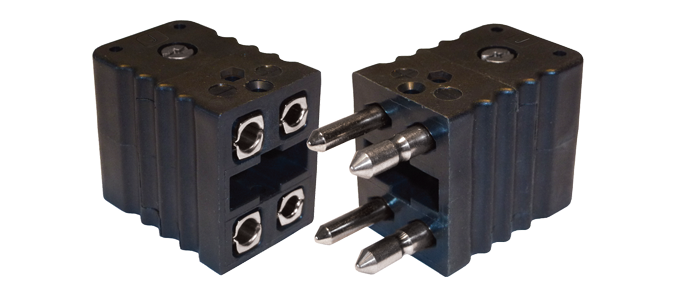

These round hollow pin duplex versions of our standard connectors are ideal for connecting duplex thermocouple sensors and extension or compensating cable to each other. The pins are polarized to avoid an incorrect connection and the connector body is additionally marked for polarity. They are rated for use between -58ºF and +410ºF (-50ºC and +210ºC).
  • Duplex standard thermocouple connector manufactured by the TC Group
  • Body: Thermoplastic compound rated -58ºF to +410ºF (-50ºC to +210ºC)
  • Suitable for wire diameters from 32 AWG up to 12 AWG (0.2mm to 2.0mm dia)
  • Color coded to ANSI MC96.1-1982
  • Dimensions: Plug 1.42” x 1.0” x 1.24” (LxWxD) with 0.59” long pins. Socket 1.42” x 1.0” x 1.24” (LxWxD)
The following types are available:
Standard Duplex Thermocouple Connectors
Order Code Description 1 - 9 10 - 24 25 - 49 Buy
524-902 Duplex Type K Standard Plug $12.00 $11.00 $9.90 Add
524-905 Duplex Type K Standard Jack $12.60 $11.60 $10.60 Add
524-906 Duplex Type T Standard Plug $12.00 $11.00 $9.90 Add
524-909 Duplex Type T Standard Jack $12.60 $11.60 $10.60 Add
524-910 Duplex Type J Standard Plug $12.00 $11.00 $9.90 Add
524-913 Duplex Type J Standard Jack $12.60 $11.60 $10.60 Add
524-914 Duplex Type N Standard Plug $12.00 $11.00 $9.90 Add
524-917 Duplex Type N Standard Jack $12.60 $11.60 $10.60 Add
524-918 Duplex Type SX/RX Standard Plug $12.00 $11.00 $9.90 Add
524-921 Duplex Type SX/RX Standard Jack $12.60 $11.60 $10.60 Add
724-923 Duplex Copper Standard Plug $12.00 $11.00 $9.90 Add
724-925 Duplex Copper Standard Jack $12.60 $11.60 $10.60 Add
524-880 Standard Cable Grommet (ID 0.059") $0.80 $0.75 $0.70 Add
524-882 Standard Cable Grommet (ID 0.098") $0.80 $0.75 $0.70 Add
524-884 Standard Cable Grommet (ID 0.177") $0.80 $0.75 $0.70 Add
524-895 Standard Cable Clamp (One per connector) $2.40 $2.20 $2.10 Add
