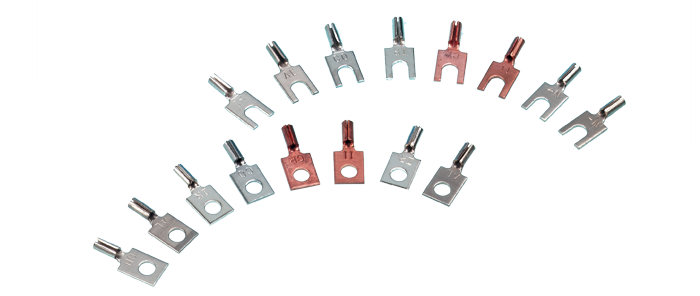

Thermocouple Spade and Ring Lugs

view larger image
These lugs which are manufactured in the relevant thermocouple material are ideal for attaching to the end of thermocouple leads or alternatively thermocouple extension cable. Using them eliminates the potential problems which may occur by introducing other alloys into the thermocouple circuit which could affect the accuracy of the thermocouple. They are available in either spade or ring format and are sold in pairs.
  • Dimensions: 0.40” x 0.30” body with either a 0.16” opening for the spade type or a 0.16” hole(or 0.19” for type N) for the ring type. All lugs have a 17 AWG (1.2mm) max conductor entry
  • Supplied in pairs for either thermocouple type K, T, J, N or SX/RX
  • Lugs are identified for their polarity
The following types are available:
Thermocouple Spade and Ring Lugs
Order Code Description 1 - 9 10 - 24 25 - 49 Buy
724-540 Type K Spade Lugs $4.00 $3.80 $3.40 Add
724-542 Type T Spade Lugs $4.00 $3.80 $3.40 Add
724-544 Type J Spade Lugs $4.00 $3.80 $3.40 Add
724-546 Type N Spade Lugs $4.00 $3.80 $3.40 Add
724-548 Type SX/RX Spade Lugs $4.00 $3.80 $3.40 Add
724-560 Type K Ring Lugs $4.00 $3.80 $3.40 Add
724-562 Type T Ring Lugs $4.00 $3.80 $3.40 Add
724-564 Type J Ring Lugs $4.00 $3.80 $3.40 Add
724-566 Type N Ring Lugs $4.00 $3.80 $3.40 Add
724-568 Type SX/RX Ring Lugs $4.00 $3.80 $3.40 Add
