Barrier Terminal Blocks (rated to 425ºF)

view larger image

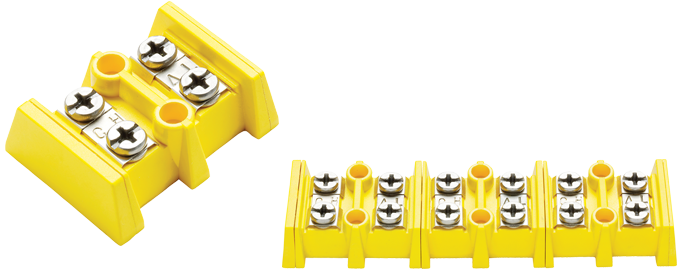

These interconnecting barrier terminal blocks are available in various thermocouple types as well as copper, for other sensors such as RTDs. Each single block comes complete with end caps and terminal lugs which are marked to identify the alloy and polarity. All are color coded for easy identification and are temperature rated to 425ºF. They can be clipped together via notches on the side of each unit to build a multi-channel connection and can be screwed down using the mounting holes in the middle of each block. The number of blocks ordered should depend on the number of pairs of wires that are required to be connected.
  • Available in thermocouple types K, T, J, N, RCB/SCB, E or B as well as Copper
  • Supplied complete with terminal lugs and end caps
  • Color coded to ANSI MC96.1-1982
  • Connected together via notches on the side of each block
  • Fixing holes: To suit M2.5 screws on 0.60” center holes
The following types are available:
Barrier Terminal Blocks (rated to 425ºF)
Order Code Description 1 - 9 10 - 24 25 - 49 Buy
526-200 Type K 1 Channel - Yellow $6.40 $5.90 $5.40 Add
526-205 Type T 1 Channel - Blue $6.40 $5.90 $5.40 Add
526-210 Type J 1 Channel - Black $6.40 $5.90 $5.40 Add
526-215 Type N 1 Channel - Orange $6.40 $5.90 $5.40 Add
526-220 Type SX/RX 1 Channel - Green $6.40 $5.90 $5.40 Add
526-225 Type E 1 Channel - Purple $6.40 $5.90 $5.40 Add
526-230 Type B 1 Channel - Grey $6.40 $5.90 $5.40 Add
526-235 Copper 1 Channel - White $6.40 $5.90 $5.40 Add
726-130 Spare Lugs - Type K $4.00 $3.80 $3.40 Add
726-132 Spare Lugs - Type T $4.00 $3.80 $3.40 Add
726-134 Spare Lugs - Type J $4.00 $3.80 $3.40 Add
726-136 Spare Lugs - Type N $4.00 $3.80 $3.40 Add
726-138 Spare Lugs - Type SX/RX $4.00 $3.80 $3.40 Add
726-142 Spare Lugs - Type E $4.00 $3.80 $3.40 Add
726-144 Spare Lugs - Type B $4.00 $3.80 $3.40 Add
726-140 Spare Lugs - Copper $4.00 $3.80 $3.40 Add
