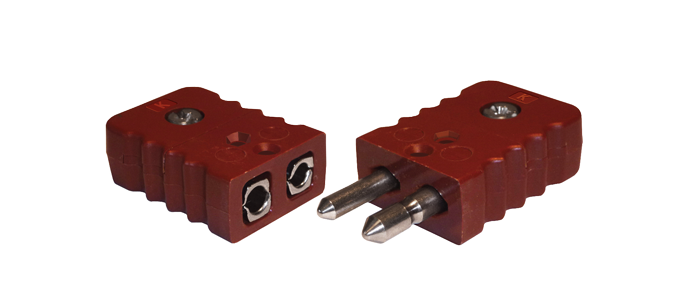

Standard 660°F rated Thermocouple Connectors
These round hollow pin 660°F rated
standard connectors are ideal for
connecting thermocouple sensors
and extension cable to each other at higher
temperatures. The connector body is made from a high temperature thermoplastic and is rated from -50°F to 660°F (-50°C to 350°C). The pins are polarized to avoid an incorrect connection.
- Thermoplastic body rated -58ºF to +660°F
- Suitable for wires from 32 AWG to 12 AWG
- Connectors colored brown and identified with thermocouple type
- Thermocouple Types: K, T, J, N, E and S/R
- Polarized round pins
- Easy to wire up and connect
- Dimensions: Plug 1.38” x 1.0” x 0.50” (LxWxD) (0.59” long pins)
Jack 1.38” x 1.0” x 0.50” (LxWxD)
- Manufactured by the TC Group
The following types are available:
