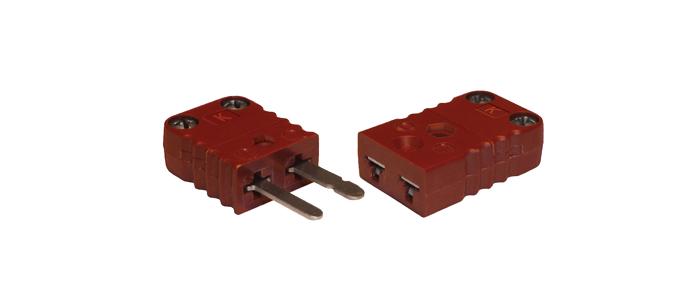

Miniature 660°F rated Thermocouple Connectors
These flat pin high temperature miniature connectors are ideal for connecting thermocouple sensors and extension cable to each other at high temperatures. The connector body is made from a high temperature thermoplastic, rated from -58°F to 660°F (-50°C to 350°C). The pins are polarized to avoid an incorrect connection, colored brown and identified with the thermocouple type.
- Thermoplastic body rated -58ºF to +660°F
- Suitable for wire diameters up to 20 AWG (0.031” dia)
- Connectors colored brown and identified with thermocouple type
- Thermocouple Types: K, T, J, N, and S/R
- Polarized flat pins
- Easy to wire up and connect
- Dimensions: Plug 0.75” x 0.50” x 0.32” (LxWxD) (0.50” long pins)
Jack 1.0” x 0.63” x 0.32” (LxWxD)
- Manufactured by the TC Group
The following types are available:
