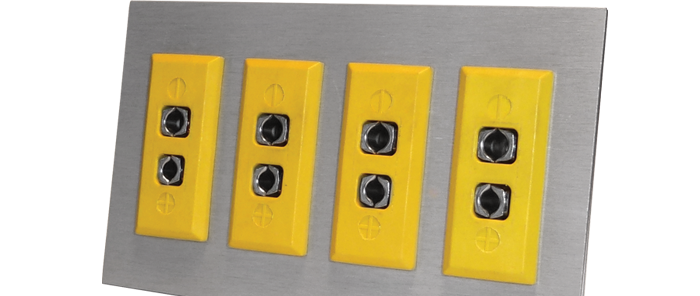

Standard Thermocouple Panels with Connectors

view larger image
This range of connector panels allows you to easily install 1, 2, 4, 6, 8, 12 or 24 standard connector jacks within a connector panel to your main panel. The panels are made from anodized aluminum without mounting holes in order for you to custom position the connector panel. Supplied complete with the standard panel jacks but remember to order the standard plugs separately. Blank panels without connectors are also available.
  • Offered for 1, 2, 4, 6, 8, 12 or 24 channels
  • Supplied with thermocouple jacks in either type K, T, J, N or SX/RX
  • Panel material: Anodized aluminum
  • Dimensions: All panels are 16 AWG thick 1 channel - 2.64” high x 1.46” wide 2 channel - 2.64” high x 2.44” wide 4 channel - 2.64” high x 4.41” wide 6 channel - 2.64” high x 6.37” wide 8 channel - 2.64” high x 8.35” wide 12 channel - 2.64” high x 12.30” wide 24 channel - 4.68” high x 12.30” wide
  • Manufactured by the TC Group
The following types are available:
Standard Thermocouple Connector Panels
Order Code Description 1 - 9 10 - 24 25 - 49 Buy
524-429 Type K 1 channel Connector Panel $26.20 $23.90 $21.90 Add
524-430 Type K 2 channel Connector Panel $30.40 $27.70 $25.50 Add
524-431 Type K 4 channel Connector Panel $49.90 $45.50 $41.70 Add
524-432 Type K 6 channel Connector Panel $70.00 $64.00 $59.00 Add
524-433 Type K 8 channel Connector Panel $90.00 $82.00 $75.00 Add
524-434 Type K 12 channel Conector Panel $130.00 $118.00 $108.00 Add
524-436 Type K 24 channel Connector Panel $249.00 $227.00 $208.00 Add
524-437 Type T 1 channel Connector Panel $26.20 $23.90 $21.90 Add
524-438 Type T 2 channel Connector Panel $30.40 $27.70 $25.50 Add
524-439 Type T 4 channel Connector Panel $49.90 $45.50 $41.70 Add
524-440 Type T 6 channel Connector Panel $70.00 $64.00 $59.00 Add
524-441 Type T 8 channel Connector Panel $90.00 $82.00 $75.00 Add
524-442 Type T 12 channel Connector Panel $130.00 $118.00 $108.00 Add
524-444 Type T 24 channel Connector Panel $249.00 $227.00 $208.00 Add
524-445 Type J 1 channel Connector Panel $26.20 $23.90 $21.90 Add
524-446 Type J 2 channel Connector Panel $30.40 $27.70 $25.50 Add
524-447 Type J 4 channel Connector Panel $49.90 $45.50 $41.70 Add
524-448 Type J 6 channel Connector Panel $70.00 $64.00 $59.00 Add
524-449 Type J 8 channel Connector Panel $90.00 $82.00 $75.00 Add
524-450 Type J 12 channel Connector Panel $130.00 $118.00 $108.00 Add
524-452 Type J 24 channel Connector Panel $249.00 $227.00 $208.00 Add
524-453 Type N 1 channel Connector Panel $26.20 $23.90 $21.90 Add
524-454 Type N 2 channel Connector Panel $30.40 $27.70 $25.50 Add
524-455 Type N 4 channel Connector Panel $49.90 $45.50 $41.70 Add
524-456 Type N 6 channel Connector Panel $70.00 $64.00 $59.00 Add
524-457 Type N 8 channel Connector Panel $90.00 $82.00 $75.00 Add
524-458 Type N 12 channel Connector Panel $130.00 $118.00 $108.00 Add
524-460 Type N 24 channel Connector Panel $249.00 $227.00 $208.00 Add
524-461 Type SX/RX 1 channel Connector Panel $26.20 $23.90 $21.90 Add
524-462 Type SX/RX 2 channel Connector Panel $30.40 $27.70 $25.50 Add
524-464 Type SX/RX 4 channel Connector Panel $49.90 $45.50 $41.70 Add
524-466 Type SX/RX 6 channel Connector Panel $70.00 $64.00 $59.00 Add
524-468 Type SX/RX 8 channel Connector Panel $90.00 $82.00 $75.00 Add
524-470 Type SX/RX 12 channel Connector Panel $130.00 $118.00 $108.00 Add
524-472 Type SX/RX 24 channel Connector Panel $249.00 $227.00 $208.00 Add
