Miniature Connector Panels with Panel Mounting Holes and Numbered Channels

view larger image
These connector panels are supplied without jacks (any of our miniature panel jacks can be easily installed by the user if required) and are made from either anodized aluminum or stainless steel. Supplied with pre-drilled panel mounting holes and numbered either horizontally or vertically.
The following types are available:

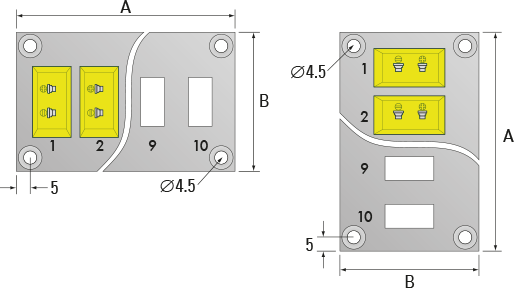

Miniature Connector Panels with Panel Mounting Holes - Numbered Horizontally
Order Code Description 1 - 9 10 - 24 25 - 49 Buy
728-700 Aluminum - 1 channel, 0.93" x 1.85" (AxB) $20.80 $19.10 $17.40 Add
728-702 Aluminum - 2 channel, 1.57" x 1.85" (AxB) $22.50 $20.60 $18.90 Add
728-704 Aluminum - 4 channel, 2.83" x 1.85" (AxB) $24.90 $22.70 $20.80 Add
728-706 Aluminum - 6 channel, 4.09" x 1.85" (AxB) $27.30 $24.90 $22.90 Add
728-708 Aluminum - 8 channel, 5.35" x 1.85" (AxB) $31.50 $28.90 $26.50 Add
728-710 Aluminum - 10 channel, 6.61" x 1.85" (AxB) $34.20 $31.20 $28.70 Add
728-712 Aluminum - 12 channel, 7.87" x 1.85" (AxB) $37.40 $34.30 $31.40 Add
728-714 Aluminum - 16 channel, 5.35" x 3.07" (AxB) $40.20 $36.90 $33.70 Add
728-716 Aluminum - 20 channel, 6.61" x 3.07" (AxB) $45.10 $41.20 $37.80 Add
728-718 Aluminum - 24 channel, 7.87" x 3.07" (AxB) $49.70 $45.40 $41.60 Add
524-106 Type K Miniature Panel Jack $6.00 $5.60 $5.10 Add
524-107 Type K Miniature Panel Blanking Jack $3.00 $2.70 $2.50 Add
524-112 Type T Miniature Panel Jack $6.00 $5.60 $5.10 Add
524-113 Type T Miniature Panel Blanking Jack $3.00 $2.70 $2.50 Add
524-118 Type J Miniature Panel Jack $6.00 $5.60 $5.10 Add
524-119 Type J Miniature Panel Blanking Jack $3.00 $2.70 $2.50 Add
524-124 Type N Miniature Panel Jack $6.00 $5.60 $5.10 Add
524-125 Type N Miniature Panel Blanking Jack $3.00 $2.70 $2.50 Add
524-130 Type SX/RX Miniature Panel Jack $6.00 $5.60 $5.10 Add
524-131 Type SX/RX Miniature Panel Blanking Jack $3.00 $2.70 $2.50 Add
524-136 Copper Miniature Panel Jack $6.00 $5.60 $5.10 Add
524-135 Copper Miniature Panel Blanking Jack $3.00 $2.70 $2.50 Add
Miniature Connector Panels with Panel Mounting Holes - Numbered Vertically
Order Code Description 1 - 9 10 - 24 25 - 49 Buy
728-800 Aluminum - 1 channel, 0.93" x 1.85" (AxB) $20.80 $19.60 $18.50 Add
728-802 Aluminum - 2 channel, 1.57" x 1.85" (AxB) $22.40 $21.20 $20.10 Add
728-804 Aluminum - 4 channel, 2.83" x 1.85" (AxB) $24.90 $23.50 $22.30 Add
728-806 Aluminum - 6 channel, 4.09" x 1.85" (AxB) $27.30 $25.80 $24.40 Add
728-808 Aluminum - 8 channel, 5.35" x 1.85" (AxB) $31.70 $29.90 $28.20 Add
728-809 Aluminum - 10 channel, 6.61" x 1.85" (AxB) $34.40 $32.40 $30.60 Add
728-810 Aluminum - 12 channel, 7.87" x 1.85" (AxB) $37.50 $35.50 $33.40 Add
728-812 Aluminum - 16 channel, 5.35" x 3.07" (AxB) $40.40 $38.10 $36.10 Add
728-814 Aluminum - 20 channel, 6.61" x 3.07" (AxB) $45.30 $42.70 $40.40 Add
728-816 Aluminum - 24 channel, 7.87" x 3.07" (AxB) $49.90 $47.00 $44.50 Add
524-106 Type K Miniature Panel Jack $6.00 $5.60 $5.10 Add
524-107 Type K Miniature Panel Blanking Jack $3.00 $2.70 $2.50 Add
524-112 Type T Miniature Panel Jack $6.00 $5.60 $5.10 Add
524-113 Type T Miniature Panel Blanking Jack $3.00 $2.70 $2.50 Add
524-118 Type J Miniature Panel Jack $6.00 $5.60 $5.10 Add
524-119 Type J Miniature Panel Blanking Jack $3.00 $2.70 $2.50 Add
524-124 Type N Miniature Panel Jack $6.00 $5.60 $5.10 Add
524-125 Type N Miniature Panel Blanking Jack $3.00 $2.70 $2.50 Add
524-130 Type SX/RX Miniature Panel Jack $6.00 $5.60 $5.10 Add
524-131 Type SX/RX Miniature Panel Blanking Jack $3.00 $2.70 $2.50 Add
524-136 Copper Miniature Panel Jack $6.00 $5.60 $5.10 Add
524-135 Copper Miniature Panel Blanking Jack $3.00 $2.70 $2.50 Add
