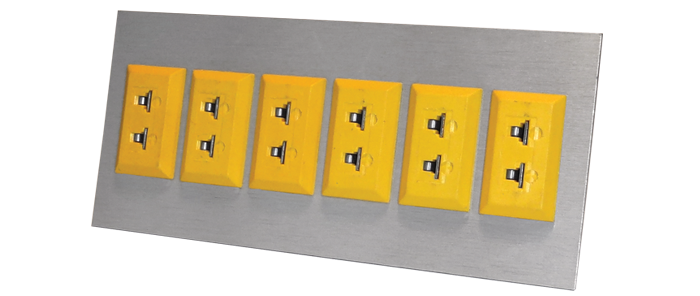

Miniature Thermocouple Panels with Connectors

view larger image
This range of connector panels allows you to easily install 1, 2, 4, 6, 8, 12 or 24 miniature connector jacks within a connector panel to your main panel. The panels are made from anodized aluminum without mounting holes in order for you to custom position the connector panel. Supplied complete with the miniature panel jacks but remember to order the miniature plugs separately. Blank panels without connectors are also available.
  • Offered for 1, 2, 4, 6, 8, 12 or 24 channels
  • Supplied with thermocouple jacks in either type K, T, J, N or SX/RX
  • Panel material: Anodized aluminum
  • Dimensions: All panels are 16 AWG thick 1 channel - 1.85” high x 0.945” wide 2 channel - 1.85” high x 1.57” wide 4 channel - 1.85” high x 2.83” wide 6 channel - 1.85” high x 4.09” wide 8 channel - 1.85” high x 5.35” wide 12 channel - 1.85” high x 7.87” wide 24 channel - 3.07” high x 7.87” wide
  • Manufactured by the TC Group
The following types are available:
Miniature Thermocouple Connector Panels
Order Code Description 1 - 9 10 - 24 25 - 49 Buy
524-137 Type K 1 channel Connector Panel $16.80 $15.40 $14.00 Add
524-138 Type K 2 channel Connector Panel $19.10 $17.50 $16.10 Add
524-139 Type K 4 channel Connector Panel $32.40 $29.60 $27.10 Add
524-140 Type K 6 channel Connector Panel $45.80 $41.80 $38.30 Add
524-141 Type K 8 channel Connector Panel $60.00 $54.00 $49.40 Add
524-142 Type K 12 channel Connector Panel $86.00 $79.00 $72.00 Add
524-144 Type K 24 channel Connector Panel $167.00 $153.00 $141.00 Add
524-145 Type T 1 channel Connector Panel $16.80 $15.40 $14.00 Add
524-146 Type T 2 channel Connector Panel $19.10 $17.50 $16.10 Add
524-147 Type T 4 channel Connector Panel $32.40 $29.60 $27.10 Add
524-148 Type T 6 channel Connector Panel $45.80 $41.80 $38.30 Add
524-149 Type T 8 channel Connector Panel $60.00 $54.00 $49.40 Add
524-150 Type T 12 channel Connector Panel $86.00 $79.00 $72.00 Add
524-152 Type T 24 channel Connector Panel $167.00 $153.00 $141.00 Add
524-153 Type J 1 channel Connector Panel $16.80 $15.40 $14.00 Add
524-154 Type J 2 channel Connector Panel $19.10 $17.50 $16.10 Add
524-155 Type J 4 channel Connector Panel $32.40 $29.60 $27.10 Add
524-156 Type J 6 channel Connector Panel $45.80 $41.80 $38.30 Add
524-157 Type J 8 channel Connector Panel $60.00 $54.00 $49.40 Add
524-158 Type J 12 channel Connector Panel $86.00 $79.00 $72.00 Add
524-160 Type J 24 channel Connector Panel $167.00 $153.00 $141.00 Add
524-161 Type N 1 channel Connector Panel $16.80 $15.40 $14.00 Add
524-162 Type N 2 channel Connector Panel $19.10 $17.50 $16.10 Add
524-163 Type N 4 channel Connector Panel $32.40 $29.60 $27.10 Add
524-164 Type N 6 channel Connector Panel $45.80 $41.80 $38.30 Add
524-165 Type N 8 channel Connector Panel $60.00 $54.00 $49.40 Add
524-166 Type N 12 channel Connector Panel $86.00 $79.00 $72.00 Add
524-168 Type N 24 channel Connector Panel $167.00 $153.00 $141.00 Add
524-169 Type SX/RX 1 channel Connector Panel $16.80 $15.40 $14.00 Add
524-170 Type SX/RX 2 channel Connector Panel $19.10 $17.50 $16.10 Add
524-172 Type SX/RX 4 channel Connector Panel $32.40 $29.60 $27.10 Add
524-174 Type SX/RX 6 channel Connector Panel $45.80 $41.80 $38.30 Add
524-176 Type SX/RX 8 channel Connector Panel $60.00 $54.00 $49.40 Add
524-178 Type SX/RX 12 channel Connector Panel $86.00 $79.00 $72.00 Add
524-180 Type SX/RX 24 channel Connector Panel $167.00 $153.00 $141.00 Add
