3 and 6 wire RTD Extension Wire 24 AWG Twisted Shielded Construction

view larger image

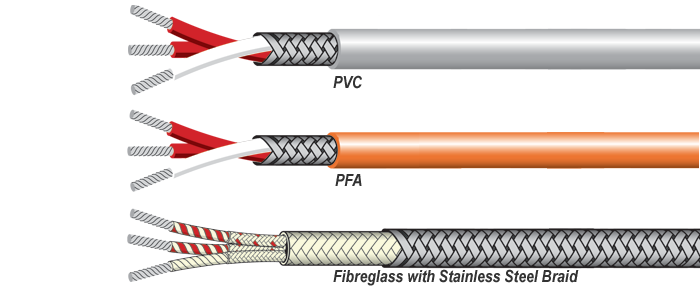

We supply 3 and 6 wire 24AWG RTD extension cable in either 50, 100, 200, 500 or 1000 ft lengths. Three wires are supplied and insulated in either Heat Resistant PVC or PFA or Stainless Steel Braided Fiberglass. The wires are then twisted, shielded, and overall sheathed in the same material.
  • 3 or 6 wires of 24 AWG stranded and twisted, PVC version has a tinned copper braid and is then overall PVC sheathed. PFA version has a tinned copper braid and is then overall sheathed. Fiberglass version is fiberglass braided then stainless steel braided overall.
  • Temperature rated as follows Heat Resistant PVC 220ºF, PFA 480ºF and Fiberglass 750ºF
  • Color code :- 2 wires red and 1 wire white
  • Outer sheath PVC - Gray, PFA - Orange and Fiberglass is stainless steel
  • Available in a variety of lengths
The following types are available:
3 wire RTD Twisted Shielded Extension Wire
Order Code Description 1 - 4 5 - 9 10 - 19 Buy
635-103 100 ft spool - PVC $52.00 $46.70 $42.80 Add
635-105 200 ft spool - PVC $88.00 $80.00 $74.00 Add
635-107 500 ft spool - PVC $159.00 $145.00 $134.00 Add
635-109 1000 ft spool - PVC $289.00 $264.00 $241.00 Add
635-113 100 ft spool - PFA (Orange Sheath) $113.00 $103.00 $95.00 Add
635-115 200 ft spool - PFA (Orange Sheath) $208.00 $190.00 $174.00 Add
635-117 500 ft spool - PFA (Orange Sheath) $399.00 $364.00 $333.00 Add
635-119 1000 ft spool - PFA (Orange Sheath) $754.00 $687.00 $629.00 Add
635-031 100 ft spool - PFA (Black Sheath) $113.00 $103.00 $95.00 Add
635-033 200 ft spool - PFA (Black Sheath) $208.00 $190.00 $174.00 Add
635-035 500 ft spool - PFA (Black Sheath) $399.00 $364.00 $333.00 Add
635-037 1000 ft spool - PFA (Black Sheath) $754.00 $687.00 $629.00 Add
635-123 100 ft spool - Fiberglass/Stainless Steel Braided $121.00 $111.00 $101.00 Add
635-125 200 ft spool - Fiberglass/Stainless Steel Braided $229.00 $210.00 $192.00 Add
635-127 500 ft spool - Fiberglass/Stainless Steel Braided $407.00 $371.00 $340.00 Add
635-129 1000 ft spool - Fiberglass/Stainless Steel Braided $794.00 $725.00 $663.00 Add
6 wire RTD Twisted Shielded Extension Wire
Order Code Description 1 - 4 5 - 9 10 - 19 Buy
635-203 100 ft spool - PVC $76.00 $70.00 $64.00 Add
635-205 200 ft spool - PVC $140.00 $128.00 $117.00 Add
635-207 500 ft spool - PVC $279.00 $254.00 $233.00 Add
635-209 1000 ft spool - PVC $484.00 $441.00 $404.00 Add
635-211 100 ft spool - PFA (Orange Sheath) $188.00 $172.00 $157.00 Add
635-213 200 ft spool - PFA (Orange Sheath) $345.00 $315.00 $289.00 Add
635-215 500 ft spool - PFA (Orange Sheath) $630.00 $574.00 $525.00 Add
635-217 1000 ft spool - PFA (Orange Sheath) $1,195.00 $1,090.00 $998.00 Add
635-051 100 ft spool - PFA (Black Sheath) $188.00 $172.00 $157.00 Add
635-053 200 ft spool - PFA (Black Sheath) $345.00 $315.00 $289.00 Add
635-055 500 ft spool - PFA (Black Sheath) $630.00 $574.00 $525.00 Add
635-057 1000 ft spool - PFA (Black Sheath) $1,195.00 $1,090.00 $998.00 Add
635-219 100 ft spool - Fiberglass/Stainless Steel Braided $225.00 $206.00 $188.00 Add
635-221 200 ft spool - Fiberglass/Stainless Steel Braided $423.00 $386.00 $353.00 Add
635-223 500 ft spool - Fiberglass/Stainless Steel Braided $737.00 $672.00 $615.00 Add
635-225 1000 ft spool - Fiberglass/Stainless Steel Braided $1,396.00 $1,272.00 $1,164.00 Add
