Single Pair Steel Wire Armored PVC Extension Wire

view larger image

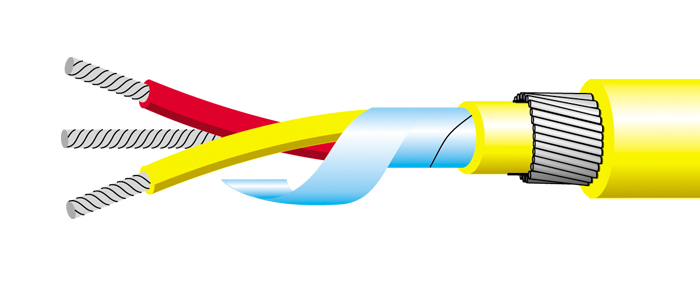

We supply single pair 16AWG armored cable in 100, 200, 500 or 1000 ft lengths in either extension grade types KX, TX, JX, NX or SX/RX in accordance with ANSI MC96.1. Each conductor is insulated in flame retardant PVC, the pair is then twisted, shielded with aluminum Mylar® tape, flame retardant PVC sheathed, steel wire armored then flame retardant PVC sheathed overall.
  • Single pair 16AWG FR PVC insulated, twisted, shielded with aluminum Mylar® tape, FR PVC sheathed, steel wire armored and overall FR PVC sheathed construction
  • Flame retardant PVC rated to 176ºF
  • Color coded:- Type KX: yellow outer sheath, yellow positive wire and red negative wire Type TX: blue outer sheath, blue positive wire and red negative wire Type JX: black outer sheath, white positive wire and red negative wire Type NX: orange outer sheath, orange positive wire and red negative wire Type SX/RX: green outer sheath, black positive wire and red negative wire
  • Available in a variety of lengths
The following types are available:
Type KX - Armored Extension Wire
Order Code Description 1 - 4 5 - 9 10 - 19 Buy
619-412 100 ft spool $421.00 $384.00 $351.00 Add
619-414 200 ft spool $708.00 $646.00 $592.00 Add
619-416 500 ft spool $1,471.00 $1,341.00 $1,228.00 Add
619-418 1000 ft spool $2,794.00 $2,547.00 $2,330.00 Add
Type TX - Armored Extension Wire
Order Code Description 1 - 4 5 - 9 10 - 19 Buy
619-452 100 ft spool $290.00 $265.00 $241.00 Add
619-454 200 ft spool $485.00 $441.00 $404.00 Add
619-456 500 ft spool $1,009.00 $920.00 $842.00 Add
619-458 1000 ft spool $1,914.00 $1,744.00 $1,597.00 Add
Type JX - Armored Extension Wire
Order Code Description 1 - 4 5 - 9 10 - 19 Buy
619-472 100 ft spool $290.00 $265.00 $241.00 Add
619-474 200 ft spool $485.00 $441.00 $404.00 Add
619-476 500 ft spool $1,009.00 $920.00 $842.00 Add
619-478 1000 ft spool $1,914.00 $1,744.00 $1,597.00 Add
Type NX - Armored Extension Wire
Order Code Description 1 - 4 5 - 9 10 - 19 Buy
619-492 100 ft spool $504.00 $460.00 $421.00 Add
619-494 200 ft spool $852.00 $776.00 $711.00 Add
619-496 500 ft spool $1,767.00 $1,612.00 $1,476.00 Add
619-498 1000 ft spool $3,350.00 $3,054.00 $2,795.00 Add
Type SX/RX - Armored Extension Wire
Order Code Description 1 - 4 5 - 9 10 - 19 Buy
619-512 100 ft spool $290.00 $265.00 $241.00 Add
619-514 200 ft spool $485.00 $441.00 $404.00 Add
619-516 500 ft spool $1,009.00 $920.00 $842.00 Add
619-518 1000 ft spool $1,914.00 $1,744.00 $1,597.00 Add
