Single Pair Extension Wire Twisted Shielded Construction

view larger image

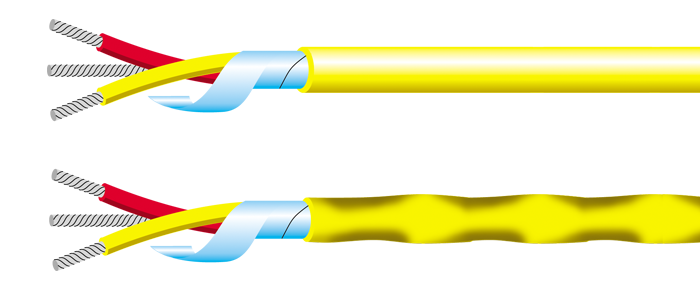

We supply 20 AWG cable in 100, 200, 500 or 1000 ft lengths in either thermocouple cable types KX, TX, JX, NX or SX/RX. Each conductor is insulated in either Heat Resistant PVC or PFA, the wires are then twisted, shielded with aluminum Mylar® tape and then overall sheathed in the same material. All conductors used (except for compensating cable) are made from the relevant thermocouple material and meet ANSI MC96.1 up to the maximum operating temperature of the insulation material. The insulation material is color coded to ANSI MC96.1-1982 as shown below.
  • 20 AWG twisted pair, shielded with aluminum Mylar® tape and overall sheathed construction
  • Heat Resistant PVC rated to 220ºF or PFA rated to 480ºF
  • Color coded :- Type KX: yellow outer sheath, yellow positive wire and red negative wire Type TX: blue outer sheath, blue positive wire and red negative wire Type JX: black outer sheath, white positive wire and red negative wire Type NX: orange outer sheath, orange positive wire and red negative wire Type SX/RX: green outer sheath, black positive wire and red negative wire
  • Available in a variety of lengths
The following types are available:
Type KX - Twisted Shielded Extension Wire
Order Code Description 1 - 4 5 - 9 10 - 19 Buy
618-432 100 ft spool - PVC $92.00 $84.00 $78.00 Add
618-434 200 ft spool - PVC $160.00 $147.00 $135.00 Add
618-436 500 ft spool - PVC $269.00 $246.00 $225.00 Add
618-438 1000 ft spool - PVC $531.00 $484.00 $443.00 Add
618-442 100 ft spool - PFA $222.00 $202.00 $184.00 Add
618-444 200 ft spool - PFA $374.00 $341.00 $312.00 Add
618-446 500 ft spool - PFA $636.00 $578.00 $529.00 Add
618-448 1000 ft spool - PFA $1,294.00 $1,181.00 $1,081.00 Add
Type TX - Twisted Shielded Extension Wire
Order Code Description 1 - 4 5 - 9 10 - 19 Buy
618-522 100 ft spool - PVC $60.00 $55.00 $49.20 Add
618-524 200 ft spool - PVC $104.00 $96.00 $87.00 Add
618-526 500 ft spool - PVC $173.00 $159.00 $146.00 Add
618-528 1000 ft spool - PVC $345.00 $315.00 $289.00 Add
618-532 100 ft spool - PFA $168.00 $152.00 $139.00 Add
618-534 200 ft spool - PFA $287.00 $261.00 $239.00 Add
618-536 500 ft spool - PFA $478.00 $437.00 $399.00 Add
618-538 1000 ft spool - PFA $948.00 $865.00 $792.00 Add
Type JX - Twisted Shielded Extension Wire
Order Code Description 1 - 4 5 - 9 10 - 19 Buy
618-652 100 ft spool - PVC $60.00 $55.00 $49.20 Add
618-654 200 ft spool - PVC $104.00 $96.00 $87.00 Add
618-656 500 ft spool - PVC $173.00 $159.00 $146.00 Add
618-658 1000 ft spool - PVC $345.00 $315.00 $289.00 Add
618-662 100 ft spool - PFA $168.00 $152.00 $139.00 Add
618-664 200 ft spool - PFA $287.00 $261.00 $239.00 Add
618-666 500 ft spool - PFA $478.00 $437.00 $399.00 Add
618-668 1000 ft spool - PFA $948.00 $865.00 $792.00 Add
Type NX - Twisted Shielded Extension Wire
Order Code Description 1 - 4 5 - 9 10 - 19 Buy
618-702 100 ft spool - PVC $102.00 $93.00 $85.00 Add
618-704 200 ft spool - PVC $179.00 $163.00 $149.00 Add
618-706 500 ft spool - PVC $295.00 $269.00 $247.00 Add
618-708 1000 ft spool - PVC $583.00 $531.00 $486.00 Add
618-712 100 ft spool - PFA $222.00 $202.00 $184.00 Add
618-714 200 ft spool - PFA $374.00 $341.00 $312.00 Add
618-716 500 ft spool - PFA $636.00 $578.00 $529.00 Add
618-718 1000 ft spool - PFA $1,294.00 $1,181.00 $1,081.00 Add
Type SX/RX - Twisted Shielded Extension Wire
Order Code Description 1 - 4 5 - 9 10 - 19 Buy
618-752 100 ft spool - PVC $60.00 $55.00 $49.20 Add
618-754 200 ft spool - PVC $104.00 $96.00 $87.00 Add
618-756 500 ft spool - PVC $173.00 $159.00 $146.00 Add
618-758 1000 ft spool - PVC $345.00 $315.00 $289.00 Add
618-762 100 ft spool - PFA $168.00 $152.00 $139.00 Add
618-764 200 ft spool - PFA $287.00 $261.00 $239.00 Add
618-766 500 ft spool - PFA $478.00 $437.00 $399.00 Add
618-768 1000 ft spool - PFA $948.00 $865.00 $792.00 Add
