Single Pair Thermocouple Wire – Parallel Construction

view larger image

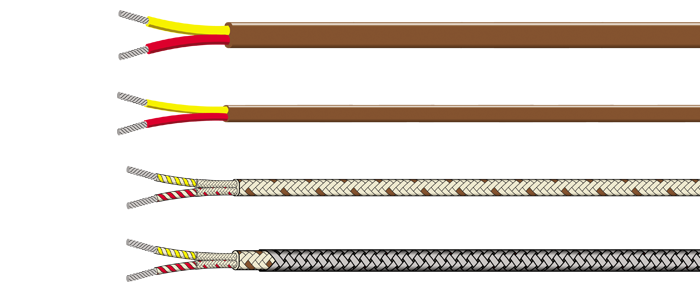

We supply 24 AWG cable in 100, 200, 500 or 1000 ft lengths in either thermocouple grade types K, T J, or N in accordance with ANSI MC96.1. Each conductor is insulated in either Heat Resistant PVC, PFA, Fiberglass or Fiberglass with Stainless Steel braiding overall. The wires are parallel construction and then overall sheathed in the same material with an optional stainless steel braiding for the fiberglass version.
  • 24 AWG solid parallel construction and overall sheathed construction
  • Heat Resistant PVC rated to 220ºF, PFA rated to 480ºF and Fiberglass rated to 890ºF
  • Color coded :- Type K: brown outer sheath, yellow positive wire and red negative wire Type T: brown outer sheath, blue positive wire and red negative wire Type J: brown outer sheath, white positive wire and red negative wire Type N: brown outer sheath, orange positive wire and red negative wire
  • Available in a variety of lengths
The following types are available:
Type K - Parallel Construction Thermocouple Wire
Order Code Description 1 - 4 5 - 9 10 - 19 Buy
618-152 100 ft spool - PVC $87.00 $80.00 $73.00 Add
618-154 200 ft spool - PVC $150.00 $136.00 $125.00 Add
618-156 500 ft spool - PVC $273.00 $250.00 $228.00 Add
618-158 1000 ft spool - PVC $545.00 $497.00 $455.00 Add
618-162 100 ft spool - PFA $98.00 $89.00 $82.00 Add
618-164 200 ft spool - PFA $167.00 $151.00 $139.00 Add
618-166 500 ft spool - PFA $287.00 $261.00 $239.00 Add
618-168 1000 ft spool - PFA $563.00 $514.00 $470.00 Add
618-172 100 ft spool - Fiberglass $78.00 $71.00 $65.00 Add
618-174 200 ft spool - Fiberglass $134.00 $122.00 $112.00 Add
618-176 500 ft spool - Fiberglass $226.00 $207.00 $189.00 Add
618-178 1000 ft spool - Fiberglass $452.00 $412.00 $378.00 Add
619-002 100 ft spool - Fiberglass/St St Braided $116.00 $106.00 $97.00 Add
619-004 200 ft spool - Fiberglass/St St Braided $199.00 $181.00 $166.00 Add
619-006 500 ft spool - Fiberglass/St St Braided $363.00 $331.00 $304.00 Add
619-008 1000 ft spool - Fiberglass/St St Braided $725.00 $661.00 $606.00 Add
Type T - Parallel Construction Thermocouple Wire
Order Code Description 1 - 4 5 - 9 10 - 19 Buy
618-212 100 ft spool - PVC $59.00 $53.00 $48.20 Add
618-214 200 ft spool - PVC $104.00 $96.00 $87.00 Add
618-216 500 ft spool - PVC $171.00 $156.00 $143.00 Add
618-218 1000 ft spool - PVC $334.00 $305.00 $279.00 Add
618-222 100 ft spool - PFA $84.00 $76.00 $69.00 Add
618-224 200 ft spool - PFA $145.00 $133.00 $121.00 Add
618-226 500 ft spool - PFA $237.00 $216.00 $198.00 Add
618-228 1000 ft spool - PFA $465.00 $424.00 $388.00 Add
618-232 100 ft spool - Fiberglass $59.00 $53.00 $48.20 Add
618-234 200 ft spool - Fiberglass $103.00 $94.00 $86.00 Add
618-236 500 ft spool - Fiberglass $171.00 $156.00 $143.00 Add
618-238 1000 ft spool - Fiberglass $339.00 $309.00 $282.00 Add
619-018 100 ft spool - Fiberglass/St St Braided $99.00 $90.00 $83.00 Add
619-020 200 ft spool -Fiberglass/St St Braided $179.00 $163.00 $149.00 Add
619-022 500 ft spool - Fiberglass/St St Braided $301.00 $273.00 $252.00 Add
619-024 1000 ft spool - Fiberglass/St St Braided $596.00 $543.00 $498.00 Add
Type J - Parallel Construction Thermocouple Wire
Order Code Description 1 - 4 5 - 9 10 - 19 Buy
618-272 100 ft spool - PVC $59.00 $53.00 $48.20 Add
618-274 200 ft spool - PVC $104.00 $96.00 $87.00 Add
618-276 500 ft spool - PVC $171.00 $156.00 $143.00 Add
618-278 1000 ft spool - PVC $334.00 $305.00 $279.00 Add
618-282 100 ft spool - PFA $84.00 $76.00 $69.00 Add
618-284 200 ft spool- PFA $145.00 $133.00 $121.00 Add
618-286 500 ft spool - PFA $237.00 $216.00 $198.00 Add
618-288 1000 ft spool - PFA $465.00 $424.00 $388.00 Add
618-292 100 ft spool - Fiberglass $59.00 $53.00 $48.20 Add
618-294 200 ft spool - Fiberglass $103.00 $94.00 $86.00 Add
618-296 500 ft spool - Fiberglass $171.00 $156.00 $143.00 Add
618-298 1000 ft spool - Fiberglass $339.00 $309.00 $282.00 Add
619-036 100 ft spool - Fiberglass/St St Braided $99.00 $90.00 $83.00 Add
619-038 200 ft spool - Fiberglass/St St Braided $179.00 $163.00 $149.00 Add
619-040 500 ft spool - Fiberglass/St St Braided $301.00 $273.00 $252.00 Add
619-042 1000 ft spool - Fiberglass/St St Braided $596.00 $543.00 $498.00 Add
Type N - Parallel Construction Thermocouple Wire
Order Code Description 1 - 4 5 - 9 10 - 19 Buy
618-362 100 ft spool - PVC $104.00 $96.00 $87.00 Add
618-364 200 ft spool - PVC $180.00 $164.00 $150.00 Add
618-366 500 ft spool - PVC $328.00 $299.00 $274.00 Add
618-368 1000 ft spool - PVC $653.00 $596.00 $546.00 Add
618-372 100 ft spool - PFA $117.00 $107.00 $98.00 Add
618-374 200 ft spool - PFA $199.00 $181.00 $166.00 Add
618-376 500 ft spool - PFA $315.00 $287.00 $263.00 Add
618-378 1000 ft spool - PFA $620.00 $567.00 $519.00 Add
618-382 100 ft spool - Fiberglass $93.00 $86.00 $79.00 Add
618-384 200 ft spool - Fiberglass $159.00 $145.00 $134.00 Add
618-386 500 ft spool - Fiberglass $250.00 $227.00 $208.00 Add
618-388 1000 ft spool - Fiberglass $498.00 $454.00 $415.00 Add
619-056 100 ft spool - Fiberglass/St St Braided $140.00 $128.00 $117.00 Add
619-058 200 ft spool - Fiberglass/St St Braided $238.00 $217.00 $199.00 Add
619-060 500 ft spool - Fiberglass/St St Braided $435.00 $397.00 $364.00 Add
619-062 1000 ft spool - Fiberglass/St St Braided $870.00 $793.00 $727.00 Add
