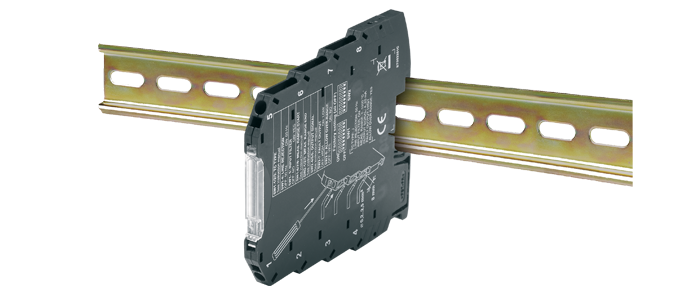

Pt100 Transmitter - Slim-line, DIN Rail Mounted

view larger image
Our new range of slim-line microprocessor based DIN rail mounted transmitters are high accuracy yet low cost and are ideal for a variety of industrial applications. The body is a tiny 0.244” thick - a huge space saving compared to most other DIN rail models. They can either be supplied factory ranged or alternatively ranged by the end user for specific applications via a configuration kit consisting of: an easy to use software package on a CD Rom, connection leads for attaching the transmitter to the USB port of your PC as well as instructions.
  • For easy connection to 2, 3 or 4 wire Pt100 sensors
  • Fixed ranges for quick connection to your system
  • Temperature Linearized
  • Provides a 4-20mA output signal
  • For DIN rail mounting
  • Tiny Dimensions! (0.244” x 3.66” x 4.03” body)
  • CE marked
    Specifications:
    Power Supply: 7-30 V DC
    Operating Temperature Range: -4°F / +149°F
    Error Transmission: 0.1% (min 0.1°F)
    Response Time (10..90%): <220 ms
    Burnout: Factory set to Upscale, programmable with TXPROG software
    Connection: Push Fit Terminals for quick connection
The following types are available:
Slim-line Pt100 DIN Rail Mounted Transmitter - Fixed Range
Order Code Description 1 - 9 10 - 24 25 - 49 Buy
948-403 3-wire, Pt100 -20ºF/+120ºF $180.00 $164.00 $150.00 Add
948-406 3-wire, Pt100 0ºF/+200ºF $180.00 $164.00 $150.00 Add
948-409 3-wire, Pt100 0ºF/+300ºF $180.00 $164.00 $150.00 Add
948-412 3-wire, Pt100 0ºF/+400ºF $180.00 $164.00 $150.00 Add
948-415 3-wire, Pt100 0ºF/+600ºF $180.00 $164.00 $150.00 Add
948-418 3-wire, Pt100 0ºF/+800ºF $180.00 $164.00 $150.00 Add
Slim-line Pt100 DIN Rail Mounted Transmitter - Adjustable
Order Code Description 1 - 9 10 - 24 25 - 49 Buy
748-421 Slim-line Adjustable DIN Rail Transmitter $180.00 $164.00 $150.00 Add
747-465 TX-PROG Configuration Software Kit $183.00 $167.00 $153.00 Add
