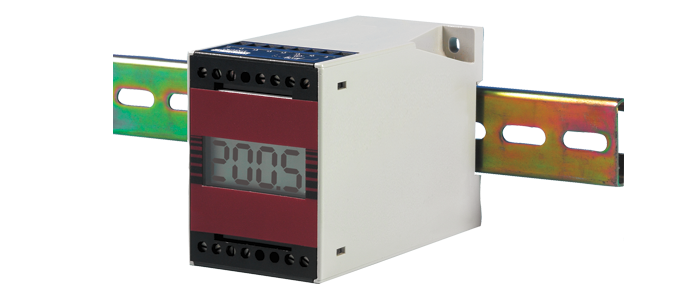

Thermocouple and Pt100 DIN Rail Mounted Transmitter with Display
This new range of microprocessor based DIN rail mounted transmitters with integral display are high accuracy yet low cost and are ideal for a variety of industrial applications. They can either be supplied factory ranged or alternatively ranged by the end user for specific applications with a configuration kit consisting of: an easy to use software package on a CD Rom, connection leads for attaching the transmitter to the serial port of your PC as well as instructions.
- Available pre configured in a variety of ranges for thermocouple types
K, T or J and RTD Pt100 or alternatively not ranged for customer configuration
- Temperature Linearized
- Provides a 0-10V DC, 0-1V DC, 4-20mA or 0-20mA output signal
- For DIN rail mounting
- CE marked
Specifications:
Minimum Span: Thermocouple 90ºF, Pt100 45ºF
Temperature Linearized
Power supply: 24V DC (other power supplies available on request)
Operating temperature range: -4ºF/+160ºF
Thermocouple type: Cold junction drift 0.02ºF/ºF
Pt100 type: Maximum sensor line resistance 500 ohms, Sensor lead effect 0.002ºF/ohm
Burnout: Upscale (max 35A)
Power supply effect: ±0.001%/V
Dimensions: 2.96” high x 2.17” wide x 4.33” deep
The following types are available:
