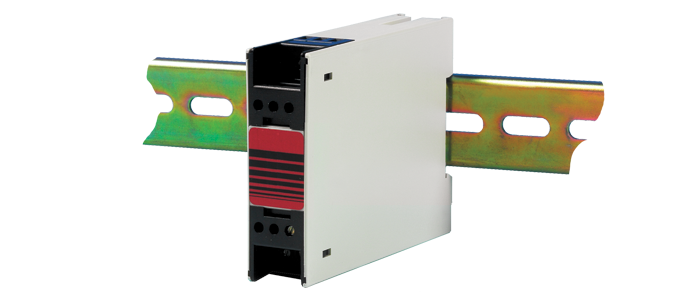

HART Protocol DIN Rail Mounted Transmitter

A new range of microprocessor based DIN rail mounted transmitters that can be set by a HART communicator or other HART related software. These highly accurate transmitters are ideal for a variety of industrial applications where compatibility with a HART system is required. They can either be supplied factory ranged or alternatively ranged by the end user for specific applications with our configuration software or with existing HART software.
  • HART® compatible
  • Available pre-configured in a variety of ranges for thermocouple types K, T or J and RTD Pt100 or alternatively not ranged for customer configuration
  • Temperature Linearized
  • Provides a 4-20mA output signal
  • For DIN rail mounting
  • CE marked
    Specifications:
    HART compatible
    Minimum Span: Thermocouple 90ºF, Pt100 45ºF
    Temperature Linearized
    Power supply: 10-40V DC, Power supply effect: ±0.001%/V
    Operating temperature range: +14ºF/+212ºF
    Thermocouple type: Cold junction drift 0.02ºF/ºF
    Pt100 type: Maximum sensor line resistance 500 ohms, Sensor lead effect 0.002ºF/ohm
    Burnout: Upscale (max 35mA). RFI protected
    Dimensions: 3.11” high x 0.89” wide x 3.89” deep
The following types are available:
HART Protocol Rail Mounted Transmitter - Fixed Range
Order Code Description 1 - 4 5 - 9 10 - 19 Buy
947-770 Type K -20°F / +300°F $529.00 $482.00 $440.00 Add
947-773 Type K 0°F / +200°F $529.00 $482.00 $440.00 Add
947-776 Type K 0°F / +400°F $529.00 $482.00 $440.00 Add
947-779 Type K 0°F / +600°F $529.00 $482.00 $440.00 Add
947-782 Type K 0°F / 1200°F $529.00 $482.00 $440.00 Add
947-785 Type K 0°F / +1600°F $529.00 $482.00 $440.00 Add
947-788 Type K 0°F / +2200°F $529.00 $482.00 $440.00 Add
947-791 Type T -20°F / +300°F $529.00 $482.00 $440.00 Add
947-794 Type T 0°F / +200°F $529.00 $482.00 $440.00 Add
947-797 Type T 0°F / +600°F $529.00 $482.00 $440.00 Add
947-800 Type T 0°F / +800°F $529.00 $482.00 $440.00 Add
947-803 Type J 0°F / +200°F $529.00 $482.00 $440.00 Add
947-806 Type J 0°F / +600°F $529.00 $482.00 $440.00 Add
947-809 Type J 0°F / 1200°F $529.00 $482.00 $440.00 Add
947-812 Type J 0°F / +1500°F $529.00 $482.00 $440.00 Add
947-815 3-wire, Pt100 -20°F / +300°F $529.00 $482.00 $440.00 Add
947-818 3-wire, Pt100 0°F / +200°F $529.00 $482.00 $440.00 Add
947-821 3-wire, Pt100 0°F / +300°F $529.00 $482.00 $440.00 Add
947-824 3-wire, Pt100 0°F / +400°F $529.00 $482.00 $440.00 Add
947-827 3-wire, Pt100 0°F / +600°F $529.00 $482.00 $440.00 Add
947-830 3-wire, Pt100 0°F / +800°F $529.00 $482.00 $440.00 Add
HART Protocol Rail Mounted Transmitter - Adjustable
Order Code Description 1 - 4 5 - 9 10 - 19 Buy
947-768 Adjustable HART Transmitter for Thermocouple or Pt100 $529.00 $482.00 $440.00 Add
747-460 Software, Connection Kit and Instructions for ranging $129.00 $118.00 $108.00 Add
