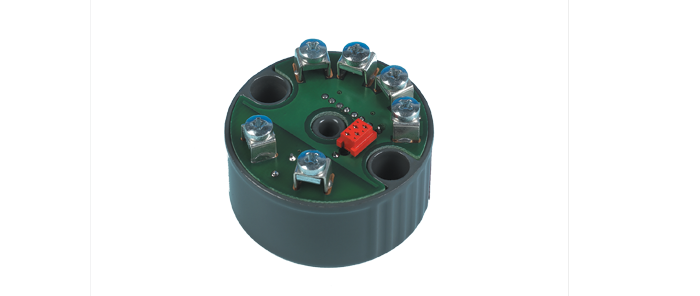

HART Protocol Head Mounted Transmitter

view larger image
A new range of microprocessor based head mounted transmitters that can be set by a HART communicator or other HART related software. These highly accurate transmitters are ideal for a variety of industrial applications where compatibility with a HART system is required. They can either be supplied factory ranged or alternatively ranged by the end user for specific applications with our configuration software or with existing HART software.
  • HART® compatible
  • Available pre-configured in a variety of ranges for thermocouple types K, T or J and RTD Pt100 or alternatively not ranged for customer configuration
  • Temperature Linearized
  • Provides a 4-20mA output signal
  • Suits all standard industrial connection heads with 1.3” hole spacing
  • CE marked
    Specifications:
    HART compatible
    Minimum Span: Thermocouple 90ºF, Pt100 45ºF
    Temperature Linearized
    Power supply: 10-40V DC, Power supply effect: ±0.001%/V
    Operating temperature range: -40ºF/+185ºF
    Thermocouple type: Cold junction drift 0.02ºF/ºF
    Pt100 type: Maximum sensor line resistance 500 ohms, Sensor lead effect 0.002ºF/ohm
    Burnout: Upscale (max 35mA). RFI protected
    Dimensions: 1.69” dia x 0.79” high body (1.14” high with terminal posts)
The following types are available:
HART Protocol Head Mounted Transmmitter - Fixed Range
Order Code Description 1 - 4 5 - 9 10 - 19 Buy
947-703 Type K -20°F / +300°F $502.00 $457.00 $419.00 Add
947-706 Type K 0°F / +200°F $502.00 $457.00 $419.00 Add
947-709 Type K 0°F / +400°F $502.00 $457.00 $419.00 Add
947-712 Type K 0°F / +600°F $502.00 $457.00 $419.00 Add
947-715 Type K 0°F / 1200°F $502.00 $457.00 $419.00 Add
947-718 Type K 0°F / +1600°F $502.00 $457.00 $419.00 Add
947-721 Type K 0°F / +2200°F $502.00 $457.00 $419.00 Add
947-724 Type T -20°F / +300°F $502.00 $457.00 $419.00 Add
947-727 Type T 0°F / +200°F $502.00 $457.00 $419.00 Add
947-730 Type T 0°F / +600°F $502.00 $457.00 $419.00 Add
947-733 Type T 0°F / +800°F $502.00 $457.00 $419.00 Add
947-736 Type J 0°F / +200°F $502.00 $457.00 $419.00 Add
947-739 Type J 0°F / +600°F $502.00 $457.00 $419.00 Add
947-742 Type J 0°F / 1200°F $502.00 $457.00 $419.00 Add
947-745 Type J 0°F / +1500°F $502.00 $457.00 $419.00 Add
947-948 3-wire, Pt100 -20°F / +300°F $502.00 $457.00 $419.00 Add
947-751 3-wire, Pt100 0°F / +200°F $502.00 $457.00 $419.00 Add
947-754 3-wire, Pt100 0°F / +300°F $502.00 $457.00 $419.00 Add
947-757 3-wire, Pt100 0°F / +400°F $502.00 $457.00 $419.00 Add
947-760 3-wire, Pt100 0°F / +600°F $502.00 $457.00 $419.00 Add
947-763 3-wire, Pt100 0°F / +800°F $502.00 $457.00 $419.00 Add
747-910 Optional DIN rail mounting kit $15.20 $13.90 $12.70 Add
HART Protocol Head Mounted Transmitter - Adjustable
Order Code Description 1 - 4 5 - 9 10 - 19 Buy
947-701 Adjustable HART Transmitter for Thermocouple or Pt100 $502.00 $457.00 $419.00 Add
747-460 Software, Connection Kit and Instructions for ranging $129.00 $118.00 $108.00 Add
747-910 Optional DIN rail mounting kit $15.20 $13.90 $12.70 Add
