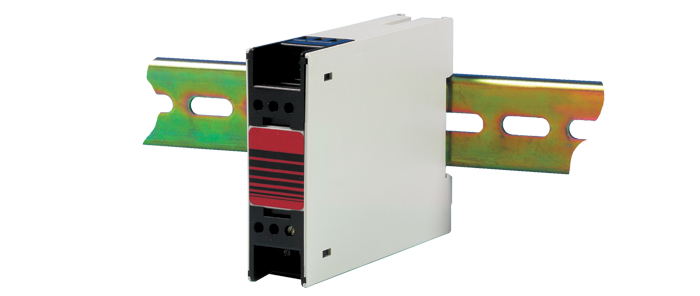

Microprocessor Based Thermocouple and Pt100 DIN Rail Mounted Transmitter
Our selection of microprocessor based DIN rail mounted transmitters are high accuracy yet low cost and are ideal for a variety of industrial applications. They can either be supplied factory ranged or alternatively ranged by the end user for specific applications with a configuration kit consisting of: an easy to use software package on a CD Rom, connection leads for attaching the transmitter to the serial port of your PC as well as instructions.
- Available pre configured in a variety of ranges for thermocouple types
K, T or J and RTD Pt100 or alternatively not ranged for customer configuration
- Temperature Linearized
- Provides a 4-20mA output signal
- For DIN rail mounting
- CE marked
Specifications:
Minimum Span: Thermocouple 90ºC, Pt100 45ºC
Temperature Linearized
Power supply: 10-40V DC
Operating temperature range: +14ºF/+212ºF
Thermocouple type: Cold junction drift 0.02ºF/ºF
Pt100 type: Maximum sensor line resistance 500 ohms, Sensor lead effect 0.002ºF/ohm
Burnout: Upscale (max 35mA)
Power supply effect: ±0.001%/V
RFI protected
Dimensions: 3.11” high x 0.89” wide x 3.89” deep
The following types are available:
