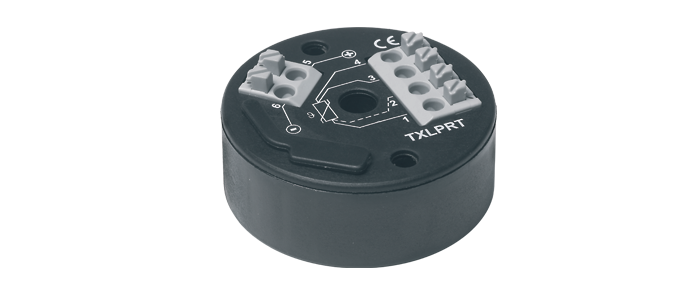

Pt100 Transmitter - Head Mounted

view larger image
Our microprocessor based range of linearized Pt100 transmitters are factory ranged for your convenience. They offer high accuracy yet low cost and are ideal for a variety of industrial applications. They can be optionally DIN rail mounted. These transmitters need a regulated power supply, please specify part number 748-205 if required.
  • For easy connection to 2, 3 or 4 wire Pt100 sensors
  • Fixed ranges for quick connection to your system
  • Provides a 4-20mA output signal
  • Suits all standard industrial connection heads with 1.3” hole spacing or can be optionally DIN rail mounted
  • CE marked
Specifications:
Power Supply: 7-30 V DC
Operating Temperature Range: -40°F / +185°F
Error Transmission: 0.1% (min 0.1°F)
Response Time (10..90%): <220ms
Fully linearized
Burnout: Programmable (Upscale / Downscale)
Connection: Push Fit Terminals for quick connection
Dimensions: 1.72” dia x 0.79” high body
The following types are available:
Pt100 Transmitter- Fixed Range
Order Code Description 1 - 9 10 - 24 25 - 49 Buy
947-230 3-wire, Pt100 -20°F / +200°F $94.00 $86.00 $79.00 Add
947-234 3-wire, Pt100 0°F / +200°F $94.00 $86.00 $79.00 Add
947-238 3-wire, Pt100 0°F / +300°F $94.00 $86.00 $79.00 Add
947-242 3-wire, Pt100 0°F / +400°F $94.00 $86.00 $79.00 Add
947-246 3-wire, Pt100 0°F / +600°F $94.00 $86.00 $79.00 Add
947-250 3-wire, Pt100 0°F / +800°F $94.00 $86.00 $79.00 Add
747-910 Optional DIN rail mounting kit $15.20 $13.90 $12.70 Add
Pt100 Transmitter - Adjustable
Order Code Description 1 - 9 10 - 24 25 - 49 Buy
747-254 Transmitter for Pt100 $94.00 $86.00 $79.00 Add
747-465 TX-PROG Configuration Software Kit $183.00 $167.00 $153.00 Add
747-910 Optional DIN rail mounting kit $15.20 $13.90 $12.70 Add
Set up Service for Transmitters
Order Code Description 1 - 9 10 - 24 25 - 49 Buy
747-999 Set up of Sensor type and range $24.10 $22.10 $20.30 Add
