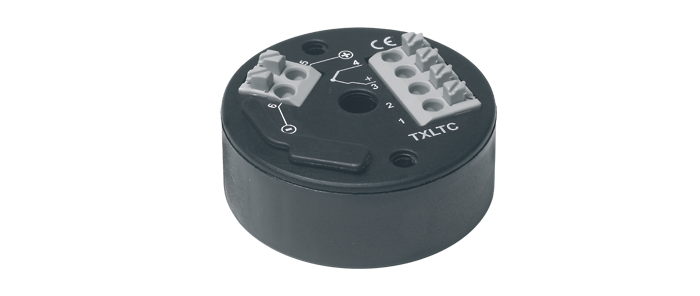

Thermocouple Transmitter - Head Mounted

view larger image
Our microprocessor based range of linearized thermocouple transmitters are factory ranged for your convenience. They offer high accuracy yet low cost and are ideal for a variety of industrial applications. They can be optionally DIN rail mounted. These transmitters need a regulated power supply, please specify part number 748-205 if required.
  • Available pre-configured in a variety of ranges for thermocouple types K, T or J or alternatively not ranged for customer configuration for K, T, J, N, E, R, S and B thermocouple types
  • Fixed ranges for quick connection to your system
  • Provides a 4-20mA output signal
  • Suits all standard industrial connection heads with 1.3” hole spacing or can be optionally DIN rail mounted
  • CE marked
Specifications:
Power Supply: 7-30 V DC
Operating Temperature Range: -40°F / +185°F
Error Transmission: 0.1% (min 0.5°F for Thermocouple)
Response Time (10..90%): <1 s
Temperature linearized
Burnout: Upscale default (programmable with software)
Connection: Push Fit Terminals for quick connection
Dimensions: 1.72” dia x 0.79” high body
The following types are available:
Thermocouple Transmitter - Fixed Range
Order Code Description 1 - 9 10 - 24 25 - 49 Buy
947-150 Type K -20°F / +300°F $94.00 $86.00 $79.00 Add
947-154 Type K 0°F / +400°F $94.00 $86.00 $79.00 Add
947-158 Type K 0°F / +600°F $94.00 $86.00 $79.00 Add
947-162 Type K 0°F / +1200°F $94.00 $86.00 $79.00 Add
947-166 Type K 0°F / +1600°F $94.00 $86.00 $79.00 Add
947-170 Type K 0°F / +2200°F $94.00 $86.00 $79.00 Add
947-174 Type T -20°F / +300°F $94.00 $86.00 $79.00 Add
947-178 Type T 0°F / +600°F $94.00 $86.00 $79.00 Add
947-182 Type T 0°F / +800°F $94.00 $86.00 $79.00 Add
947-186 Type J 0°F / +600°F $94.00 $86.00 $79.00 Add
947-190 Type J 0°F / +1200°F $94.00 $86.00 $79.00 Add
947-194 Type J 0°F / +1500°F $94.00 $86.00 $79.00 Add
747-910 Optional DIN rail mounting kit $15.20 $13.90 $12.70 Add
Thermocouple Transmitter - Adjustable
Order Code Description 1 - 9 10 - 24 25 - 49 Buy
747-198 Transmitter for Thermocouple $94.00 $86.00 $79.00 Add
747-465 TX-PROG Configuration Software Kit $183.00 $167.00 $153.00 Add
747-910 Optional DIN rail mounting kit $15.20 $13.90 $12.70 Add
Set up Service for Transmitters
Order Code Description 1 - 9 10 - 24 25 - 49 Buy
747-999 Set up of Sensor type and range $24.10 $22.10 $20.30 Add
  Para 10 ou mais peças, o set up acima é gratuito.
