Flat Film Pt100 Elements

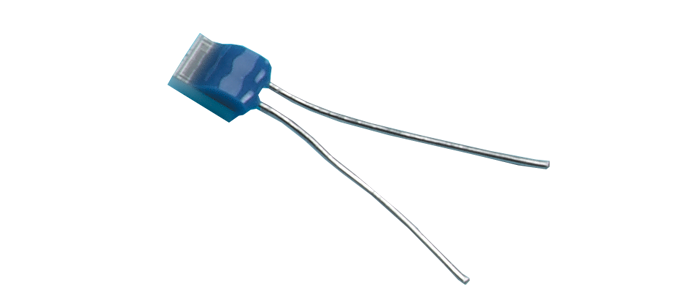

Placed on a ceramic substrate, these laser trimmed RTD elements have a variety of uses including measuring surface or air flow temperatures. The measuring point for the nominal resistance of 100 ohms @ 0ºC is taken 0.2” from the end of the sensor body. We recommend that any user who is not sure how to use these products should choose a made up 3 wire RTD sensor shown elsewhere in this catalog.
- Nominal resistance: 100 ohms at 0ºC, Alpha = 0.00385
- Tolerance Classes available: B or A
- Temperature range: -148ºF to 500ºC
- Dimensions: 0.08” long x 0.08” wide x 0.4mm nominal thickness (excluding the blue lead attachment part)
- Leads: 0.4” long (resistance value taken at 0.196” from sensor body)
The following types are available:
