100 ohm RTD Sensor with MIcro Head

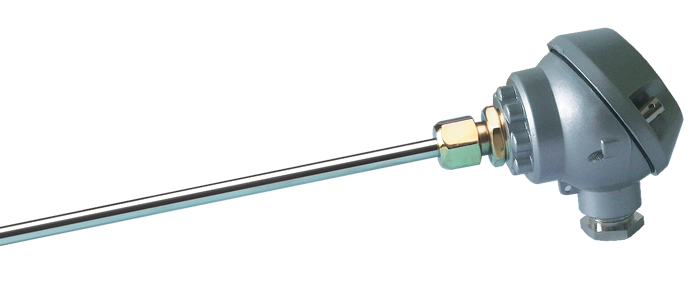

These rigid sensors have a stainless steel welded closed end sheath. The Pt100 sensing element is 10mm long and is placed at the tip of the sheath which means that the minimum immersion depth should be at least 50mm. The sensor is rated up to 350ºC. They are terminated with a micro head (2.48” high x 1.93” diameter). Ideal where space is at a premium and a micro head is required. A range of extension cables and adjustable compression fittings can be found in this catalogue to complement this product.
- 3 wire configuration
- 100 ohm RTD element, Alpha = 0.00385, Class B
- Sheath: 316 Stainless Steel 0.125” or 0.250” OD
- Variety of lengths available. Length shown does not include the head or its gland
- Operating range: -100ºF to +660ºF (-75ºC to +350ºC)
- Terminated in a micro weatherproof die cast alloy head rated to 275ºF
- Ideal where space is at a premium
The following types are available:
