100 ohm High Temp Magnet RTD

view larger image

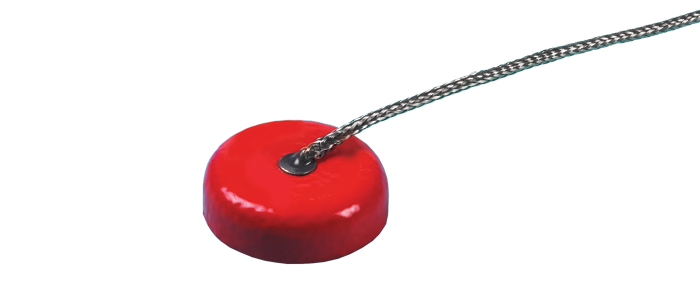

This versatile magnetic RTD sensor is suitable for high temperature measurements on ferrous surfaces up to a maximum of 570ºF. The sensor is supplied with 72” of stainless steel braided fiberglass insulated cable.
  • Surface temperature measurement of ferrous materials
  • 100 ohm RTD element, Alpha = 0.00385, Class B
  • 3 wire configuration
  • Leads 72” fiberglass insulated with a stainless steel overbraid
  • Operating range: 14ºF to 570ºF (-10ºC to +300ºC)
  • Magnet Dimensions: 1.14” dia. x 0.33” thick
The following types are available:
100 ohm High Temp Magnet RTD
Order Code Description 1 - 9 10 - 24 25 - 49 Buy
515-755 Hi Temp magnetic RTD sensor $115.00 $105.00 $96.00 Add
