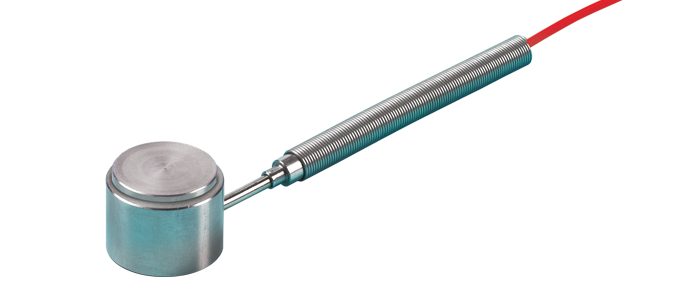

100 ohm Heavy Duty Magnet RTD

view larger image
An extremely powerful magnet makes this RTD sensor ideal for heavy duty applications where the surface temperature of ferrous materials needs to be measured. The sensor has a pull strength of 20lbs and is supplied with 72” of PVC insulated leads.
  • Surface temperature measurement of ferrous materials
  • 100 ohm RTD element, Alpha = 0.00385, Class B
  • 3 Wire configuration
  • Leads 72” PVC insulated leads, 3 wire configuration
  • Operating range: 14ºF to 175ºF (-10ºC to +80ºC)
  • Pull strength: 20lbs
  • Magnet Dimensions:1.0" dia. x 0.531" thick
The following types are available:
100 ohm Heavy Duty Magnet RTD
Order Code Description 1 - 9 10 - 24 25 - 49 Buy
515-750 Heavy Duty magnetic RTD sensor $192.00 $176.00 $159.00 Add
