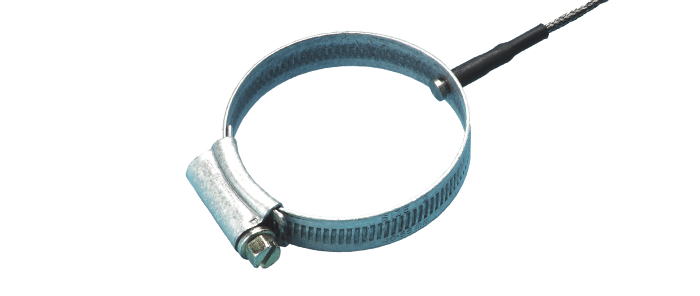

100 ohm Adjustable Ring RTD Sensor

view larger image
For pipe temperature measurement up to 540ºF. This sensor incorporates a 100 ohm sensor attached to an adjustable ring. They are available in a number of sizes to suit your diameter of pipe. For enhanced performance we recommend that you lag the sensor after attaching to the pipe.
  • 3 wire configuration
  • 100 ohm RTD element, Alpha = 0.00385, Class B
  • Versions for pipes 1.25” to 2”, 2” to 6” or 6” to 12” offered
  • Operating range: -58ºF to +540ºF (-50ºC to +280ºC)
  • Leads: 72” fiberglass insulated with a stainless steel overbraid
The following types are available:
100 ohm Adjustable Ring RTD Sensor
Order Code Description 1 - 9 10 - 24 25 - 49 Buy
315-270 Ring RTD sensor 1.25" to 2" $67.00 $61.00 $57.00 Add
315-273 Ring RTD sensor 2" to 6" $71.00 $65.00 $59.00 Add
315-276 Ring RTD sensor 6" to 12" $73.00 $67.00 $61.00 Add
