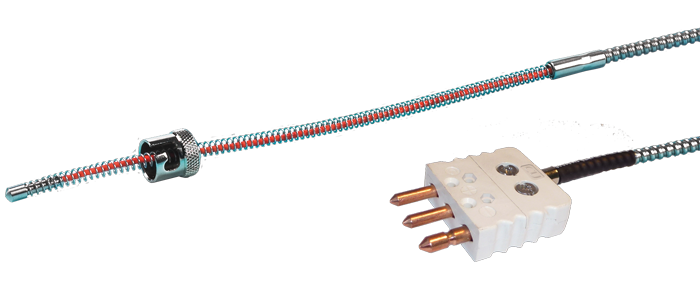

100 ohm Bayonet RTD Sensor with spring and cap - Heavy Duty Version
Suitable for plastics machinery and general purpose applications, these assemblies have a total length of 72”. The flexible stainless steel armored cable provides increased mechanical protection in arduous environments. These assemblies are supplied with an 8” spring and a industry standard, one slot adjustable bayonet cap fitting. The fitting can be adjusted for exact positioning on site and is suitable where several applications in your plant require individual positioning of the sensor. The sensing tip is incorporated within a 0.7” long x 0.187” diameter tube which the cable and armor are sealed to. The sensor is terminated in a 3 pin standard round pin plug.
- 3 wire configuration
- 100 ohm RTD element, Alpha = 0.00385, Class B
- Temperature rating: 390ºF continuous
- Sheath: 316 stainless steel 0.188” dia x 0.7” long
- Leads: 72” Stainless Steel Armored over PFA insulated cable terminated in a standard round pin plug. Spring length 8”
- Terminated in a 3 pin standard round pin plug
The following types are available:
