100 ohm Bayonet RTD Sensor with spring and cap

view larger image

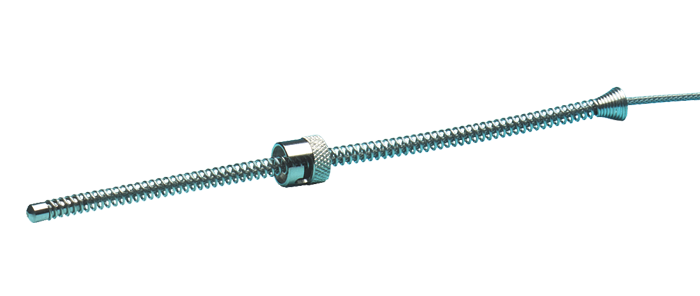

Suitable for plastics machinery and general purpose applications, these assemblies are supplied supplied with an 8” spring and a industry standard, one slot adjustable bayonet cap fitting. The fitting can be adjusted for exact positioning on site and is suitable where several applications in your plant require individual positioning of the sensor. The sensing tip is incorporated within a 0.7” long x 0.188”, 0.250” or 0.315” diameter tube which the stainless steel braided leads are sealed into.
  • 3 wire configuration
  • 100 ohm RTD element, Alpha = 0.00385, Class B
  • Sheath and lead rated -58ºF to +660ºF (-50ºC to +350ºC)
  • Sheath: 316 stainless steel 0.185”, 0.250” or 0.315” dia x 0.7” long
  • Leads: 72” fiberglass insulated with stainless steel overbraid (including spring length)
The following types are available:
100 ohm Bayonet RTD Sensor with Spring and Cap
Order Code Description 1 - 9 10 - 24 25 - 49 Buy
315-150 Bayonet RTD Sensor - 0.188" $54.00 $49.30 $45.20 Add
315-153 Bayonet RTD Sensor - 0.250" $54.00 $49.30 $45.20 Add
315-156 Bayonet RTD Sensor - 0.315" $54.00 $49.30 $45.20 Add
201-169 1/8” NPT adaptor for 0.188” & 0.250” sensors $5.30 $5.00 $4.60 Add
201-172 1/4” NPT adaptor for 0.188” & 0.250” sensors $5.30 $5.00 $4.60 Add
201-175 1/4” NPT adaptor for 0.315” sensors $5.30 $5.00 $4.60 Add
