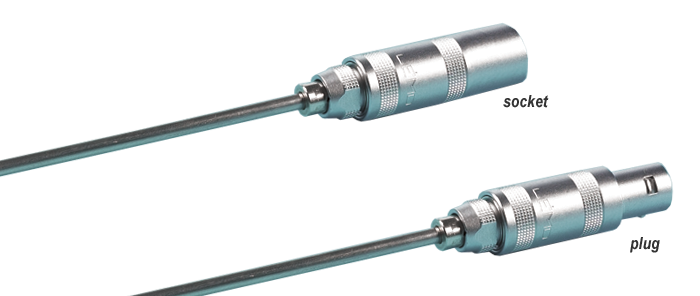

100 ohm RTD Sensor with a Size 1 Lemo Style Connector
These rigid sensors have a stainless steel welded closed end sheath. The RTD sensing element is 0.4” long and is placed at the tip of the sheath which means that the minimum immersion depth should be at least 2”. The sensor is rated up to 540ºF. They are terminated with a size 1 Lemo style plug or jack. Ideal where quick disconnection is required near to the sensor. Mating connectors and a variety of extension cables and adjustable compression fittings can be found in this catalog to complement this product.
- 4 wire configuration
- 100 ohm RTD element, Alpha = 0.00385, Class B
- Sheath: 316 Stainless Steel 0.125” OD
- Variety of lengths available. Length shown does not include the plug or its adaptor
- Operating range: -100ºF to +540ºF (-75ºC to +280ºC)
- Terminated in a size 1 Lemo style plug or jack. Mating connectors are available separately
The following types are available:
