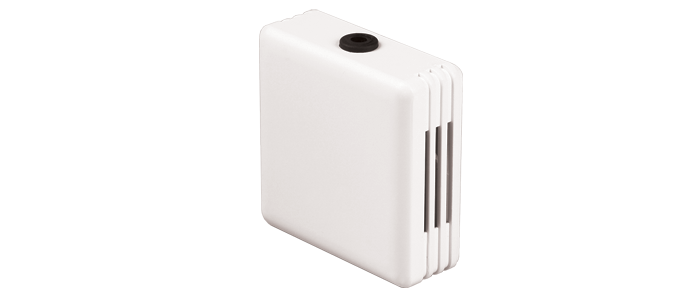

Indoor Air Temperature 100 and 1000 ohm RTD Sensor
This air temperature sensor incorporates a Class B 100 ohm or 1000 ohm RTD element which can be wall mounted and is most suited to indoor applications especially in energy management systems.
- Plastic enclosure dimensions: 2.75” x 2.75” x 1.06”
- 3 wire configuration
- Sensor: 100 ohm RTD element, Alpha = 0.00385, Class B
or 1000 ohm element
- Wire termination: Screw terminal block
- Mounting: Suited to wall mounting via screw holes in back of case
- Cable entry: Via base of enclosure knock out hole
- Operating range: -4ºF to +212ºF (-20ºC to +100ºC)
The following types are available:
