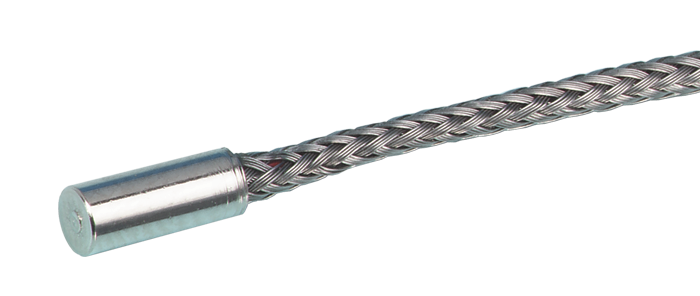

100 ohm Standard Bearing RTD Sensor
These bearing sensors are designed for use in bearing shoes and will give reliable indication as to the bearing condition. This may provide an early warning of oil film breakdown and allow the machine to shutdown and avoid unnecessary damage.
- 3 wire configuration
- 100 ohm RTD element,
Alpha = 0.00385, Class B
- Tip dimensions: 0.125” dia x 0.315” long or 0.250” dia x 0.315” long
- Operating range: -13ºF to 480ºF (-25ºC to 250ºC)
- Extension leads: 72” of 30 AWG stranded PFA insulated wires, stainless steel braided. 3 wire - 2 colored red and 1 colored white
The following types are available:
