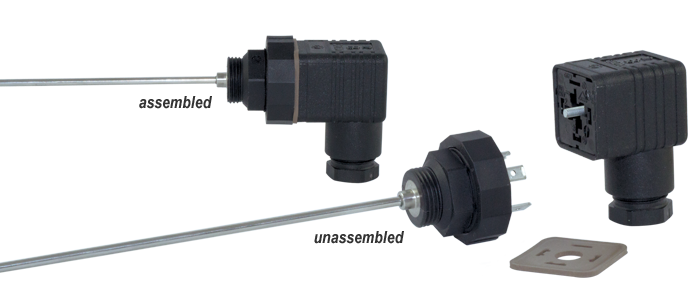

100 ohm RTD Sensor with Hirschmann Connector

view larger image
These rigid sensors have a 0.40” long sensing element at the tip within a stainless steel welded closed end sheath. To achieve the most reliable reading, the minimum immersion depth should be at least 0.80”. They are terminated in a Hirschmann connector, which is comprised of a plug and jack and a gasket in between which makes the sensor IP65 rated.
  • 3 wire configuration
  • 100 ohm RTD element, Alpha = 0.00385, Class B
  • Sheath: 316 Stainless Steel 0.125” or 0.250” OD
  • Operating range: -58ºF to +390ºF (-50°C to +200°C)
  • IP65 Rated
The following types are available:
100 ohm RTD Sensor with Hirschmann Connector
Order Code Description 1 - 9 10 - 25 26 - 50 Buy
314-933 0.125" dia x 6" long $102.00 $92.00 $84.00 Add
314-936 0.125" dia x 12" long $104.00 $94.00 $86.00 Add
314-939 0.125" dia x 18" long $107.00 $97.00 $87.00 Add
314-942 0.250" dia x 6" long $102.00 $92.00 $84.00 Add
314-945 0.250" dia x 12" long $104.00 $94.00 $86.00 Add
314-948 0.250" dia x 18" long $107.00 $97.00 $87.00 Add
