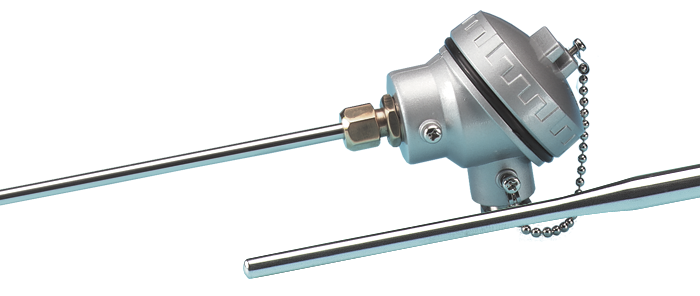

Swaged RTD Sensor - Pt100 with Miniature Weatherproof Head
A unique fast response, high strength, low cost solution to many problematical temperature measurement applications. Rugged large diameter with a low thermal mass reduced tip provides for incredibly fast response. They are terminated with an IP67 miniature weatherproof head. Ideal where a heavy duty connection needs to be made near to the sensor. A variety of extension cables and adjustable compression fittings can be found in this catalog to complement this product. Do remember to select compression fittings for the larger diameter of the sensor.
- 3 wire configuration
- 100 ohm RTD element, Alpha = 0.00385, Class B
- Sheath Material: 316 Stainless Steel
- Variety of lengths and diameters available. Length shown does not include the head or its gland
- The swaged tip part of the sensor is approximately 2” long. This part of the sensor has nominal dimensions due to the nature of swaging
- Operating range: -100ºF to +540ºF (-75ºC to +280ºC)
- Terminated in an IP67 miniature weatherproof die cast alloy head rated to 275ºF
The following types are available:
