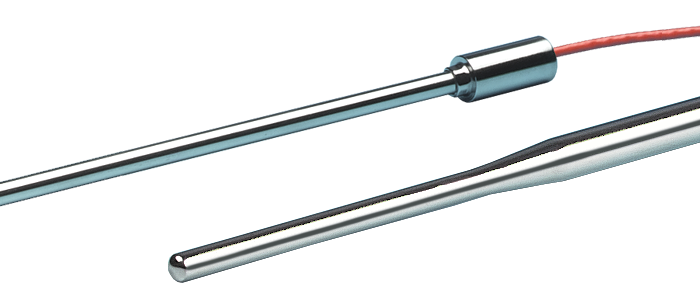

100 ohm Swaged RTD Sensor With Potting Adaptor
A unique fast response, high strength, low cost solution to many problematical temperature measurement applications. Rugged large diameter with a low thermal mass reduced tip provides for incredibly fast response. They are terminated with a potting adaptor which allows the attachment of the 72” long PFA extension leads. A variety of extension cables and adjustable compression fittings can be found in this catalog to complement this product. Do remember to select compression fittings for the larger diameter of the sensor.
- 3 wire configuration
- 100 ohm RTD element, Alpha = 0.00385, Class B
- Sheath Material: 316 Stainless Steel
- Variety of lengths and diameters available. Length shown does not include the potting adaptor or extension leads
- The swaged tip part of the sensor is approximately 2” long. This part of the sensor has nominal dimensions due to the nature of swaging
- Operating range: -100ºF to +540ºF (-75ºC to +280ºC)
- Terminated in a potting adaptor 0.5” x 1.14” long rated to 275ºF
- Extension Leads: 72” long, 24AWG PFA insulated wires with PFA® oversheath. 3 wire - 2 colored red and 1 colored white
The following types are available:
