100 ohm Rugged Self Adhesive Patch RTD Sensor

view larger image

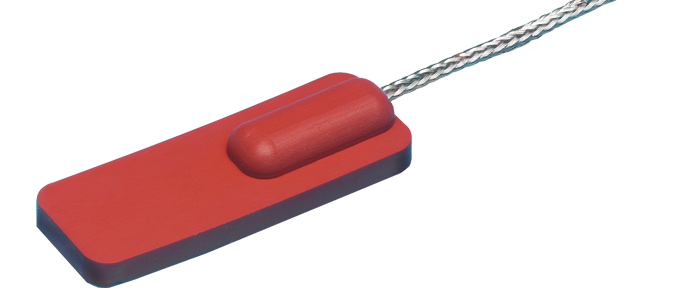

This rugged sensor incorporates a silicon rubber patch with a Pt100 thin film element within, attached to 72” long PFA leads with stainless steel braided leads. The patch is self adhesive and when placed in position enables good response times from the flush mounted RTD element.
  • Thin film 100 ohm RTD element, Alpha = 0.00385, Class B
  • Rubber Patch dimensions: 1.57” x 0.55” x 0.28” maximum depth
  • This is a 4 wire device; however, it can easily be used for three wire applications by omitting to connect up one of the white leads
  • Sensor housing: Silicon rubber with self adhesive backing
  • Operating range: -58ºF to +300ºF (-50ºC to +150ºC)
  • Leads: 72” PFA insulated, stainless steel braided
The following types are available:
Rugged Self Adhesive Patch RTD Sensor
Order Code Description 1 - 4 5 - 9 10 - 19 Buy
515-680 Rugged Self Adhesive RTD Sensor $91.00 $83.00 $76.00 Add
