100 ohm Self Adhesive Patch RTD Sensor

view larger image

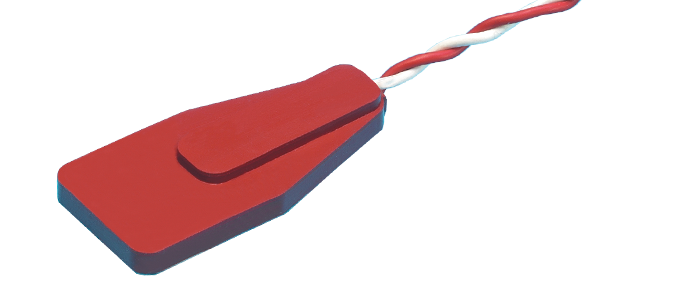

This sensor incorporates a silicon rubber patch with a RTD thin film element within, attached to 72” long PFA leads. They are available in two different patch sizes for customer convenience. The patch is self adhesive and when placed in position enables good response times from the flush mounted RTD element.
  • Thin film 100 ohm RTD element, Alpha = 0.00385, Class B
  • Rubber Patch dimensions: Standard: 1.81” x 0.55” x 0.13” maximum depth Large: 1.57” x 0.55” x 0.28” maximum depth
  • This is a 4 wire device; however, it can easily be used for three wire applications by omitting to connect up one of the white leads
  • Sensor housing: Silicon rubber with self adhesive backing
  • Operating range: -58ºF to +300ºF (-50ºC to +150ºC)
  • Leads: 72” PFA insulated
The following types are available:
Self Adhesive Patch RTD Sensor
Order Code Description 1 - 4 5 - 9 10 - 19 Buy
515-670 Standard Self Adhesive RTD sensor 1.81 x 0.55 x 0.13" $75.00 $68.00 $62.00 Add
515-675 Large Self Adhesive RTD sensor 1.57 x 0.55 x 0.28" $80.00 $73.00 $67.00 Add
