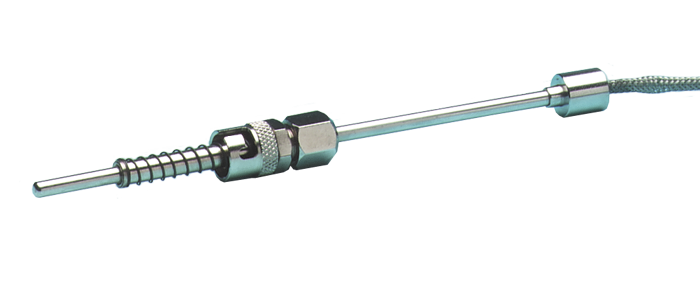

100 ohm Bayonet RTD sensor with an adjustable cap fitting

view larger image
Suitable for plastics machinery and general purpose applications these assemblies are supplied in several different lengths with an industry standard one slot adjustable bayonet cap fitting. The fitting can be fine tuned for positioning on site and is suitable where several applications in your plant require individual positioning of the sensor.
  • 3 wire configuration
  • 100 ohm RTD element, Alpha = 0.00385, Class B
  • Rated -58ºF to +660ºF (-50ºC to +350ºC)
  • Sheath: 316 stainless steel 0.188” dia x 4”, 6” or 8” long
  • Leads: 72” fiberglass insulated with a stainless steel overbraid
The following types are available:
100 ohm Bayonet RTD Sensor
Order Code Description 1 - 4 5 - 9 10 - 19 Buy
315-190 Bayonet RTD Sensor - 4" long $54.00 $49.30 $45.20 Add
315-193 Bayonet RTD Sensor - 6" long $57.00 $51.00 $46.60 Add
315-196 Bayonet RTD Sensor - 8" long $58.00 $53.00 $47.60 Add
201-198 Spare adjustable bayonet cap fitting $15.20 $13.90 $12.80 Add
201-172 1/4 inch NPT adaptor for 0.188" and 0.250" sensors $5.30 $5.00 $4.60 Add
201-175 1/4 inch NPT adaptor for 0.315" sensors $5.30 $5.00 $4.60 Add
