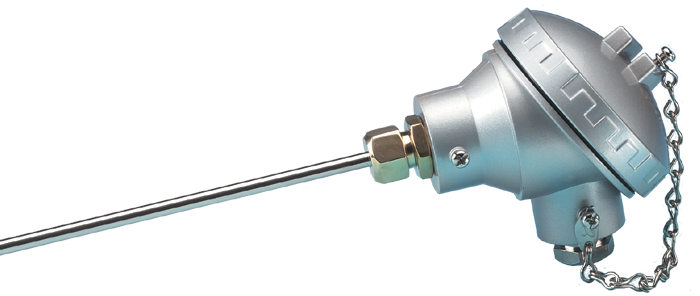

100 ohm RTD Sensor Mineral Insulated with IP67 Standard Weatherproof Head 930ºF / 1100ºF rated
Ideal for either high temperature applications or situations requiring a long probe length, these semi flexible sensors have a stainless steel mineral insulated welded closed end sheath. The RTD sensing element is 0.4” long and is placed at the tip of the sheath which means that the minimum immersion depth should be at least 2”. The sensor is rated up to 930ºF or 1100ºF at the tip. They are terminated with an IP67 standard weatherproof head rated to 275ºF. Ideal where a heavy duty connection needs to made near to the sensor. A variety of extension cables and adjustable compression fittings can be found in this catalog to complement this product.
- 3 wire configuration
- 100 ohm RTD element, Alpha = 0.00385, Class B
- Sheath: 316 Stainless Steel Mineral Insulated 0.125”, 0.250” or 0.315” OD
- Variety of lengths available. Length shown does not include the head or its gland
- Operating range: -100ºF to +930ºF (-75ºC to +500ºC) or -328ºF to +1100ºF (-200ºC to +600ºC) at tip
- Terminated in an IP67 standard weatherproof die cast alloy head rated to 275ºF
The following types are available:
