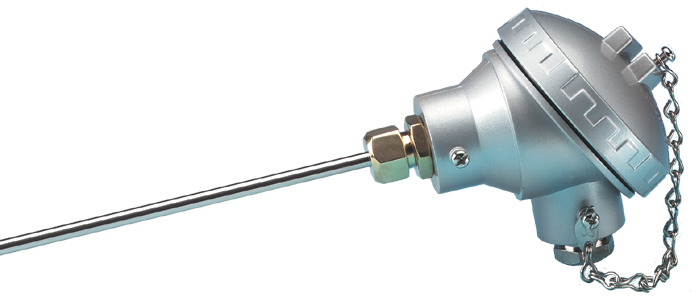

100 ohm RTD Sensor with Standard IP67 Weatherproof Head
These rigid sensors have a stainless steel welded closed end sheath. The RTD sensing element is 0.4” long and is placed at the tip of the sheath which means that the minimum immersion depth should be at least 2”. The sensor is rated up to 540ºF. They are terminated with an IP67 standard weatherproof head. Ideal where a heavy duty connection needs to be made near to the sensor. A variety of extension cables and adjustable compression fittings can be found in this catalog to complement this product.
- 3 wire configuration
- 100 ohm RTD element, Alpha = 0.00385, Class B
- Sheath: 316 Stainless Steel 0.250” or 0.315” OD
- Variety of lengths available. Length shown does not include the head or its gland
- Operating range: -100ºF to +660ºF (-75ºC to +350ºC)
- Terminated in an IP67 standard weatherproof die cast alloy head rated to 275ºF
The following types are available:
