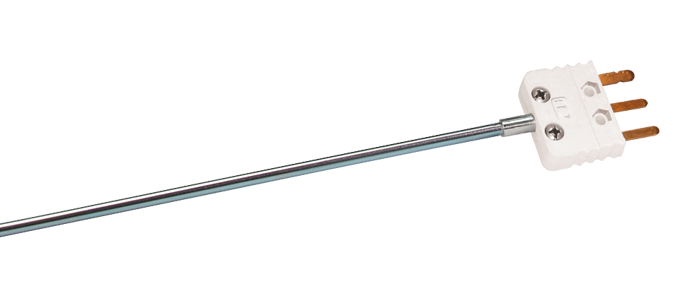

100 ohm RTD Sensor with Miniature Plug
These rigid sensors have a stainless steel welded closed end sheath. The RTD sensing element is 0.4” long and is placed at the tip of the sheath which means that the minimum immersion depth should be at least 2”. The sensor is rated up to 540ºF. They are terminated with a three pin miniature flat pin plug. Ideal where quick disconnection is required near to the sensor. Matching jacks and a variety of extension cables and adjustable compression fittings can be found in this catalog to complement this product.
- 3 wire configuration
- 100 ohm RTD element, Alpha = 0.00385, Class B
- Sheath: 316 Stainless Steel 0.125” OD
- Variety of lengths available. Length shown does not include the plug or its adaptor
- Operating range: -100ºF to +540ºF (-75ºC to +280ºC)
- Terminated in a white 3 pin miniature flat pin plug rated to 275ºF . Matching jacks are available separately
The following types are available:
