Standard Budget 100 or 1000 ohm RTD Sensor

view larger image

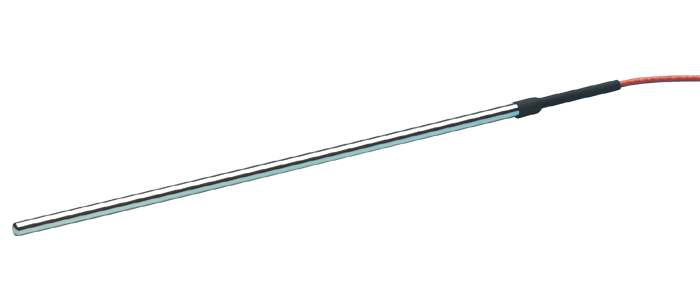

These rigid sensors have a stainless steel welded closed end sheath. The RTD sensing element is 0.4” long and is placed at the tip of the sheath which means that the minimum immersion depth should be at least 2”. They are terminated with heat shrink tubing which allows the attachment of the 72” long PFA extension leads. They are an ideal budget buy for general use up to 390ºF. A complete selection of adjustable compression fittings can be found in this catalog to complement this product.
  • 3 wire configuration
  • 100 ohm RTD element, Alpha = 0.00385, Class B or 1000 ohm element
  • Sheath: 316 Stainless Steel 0.125” or 0.250” OD
  • Variety of lengths available. Length shown does not include heat shrink tubing or extension leads
  • Operating range: -58ºF to +390ºF (-50ºC to +200ºC)
  • Extension Leads: 72” long, 24 AWG stranded PFA insulated wires with PFA oversheath. 3 wire - 2 colored red and 1 colored white
The following types are available:
Standard Budget 100 ohm RTD Sensor
Order Code Description 1 - 9 10 - 24 25 - 49 Buy
314-100 0.125" dia x 2" long $54.00 $48.50 $44.50 Add
314-103 0.125" dia x 4" long $56.00 $51.00 $46.20 Add
314-106 0.125" dia x 6" long $58.00 $52.00 $47.10 Add
314-109 0.125" dia x 8" long $59.00 $53.00 $48.40 Add
314-112 0.125" dia x 12" long $62.00 $56.00 $51.00 Add
314-115 0.125" dia x 18" long $64.00 $58.00 $53.00 Add
314-150 0.177" dia x 2" long $54.00 $48.50 $44.50 Add
314-152 0.177" dia x 4" long $56.00 $51.00 $46.20 Add
314-154 0.177" dia x 6" long $58.00 $52.00 $47.10 Add
314-156 0.177" dia x 8" long $59.00 $53.00 $48.40 Add
314-160 0.177" dia x 12" long $67.00 $61.00 $57.00 Add
314-119 0.250" dia x 2” long $54.00 $48.50 $44.50 Add
314-121 0.250" dia x 4" long $56.00 $51.00 $46.20 Add
314-124 0.250" dia x 6" long $58.00 $52.00 $47.10 Add
314-127 0.250" dia x 8" long $59.00 $53.00 $48.40 Add
314-130 0.250" dia x 12" long $62.00 $56.00 $51.00 Add
314-133 0.250" dia x 18" long $64.00 $58.00 $53.00 Add
Standard Budget 1000 ohm RTD Sensor
Order Code Description 1 - 9 10 - 24 25 - 49 Buy
314-002 0.125" dia x 2" long $54.00 $48.50 $44.50 Add
314-004 0.125" dia x 4" long $56.00 $51.00 $46.20 Add
314-006 0.125" dia x 6" long $58.00 $52.00 $47.10 Add
314-008 0.125" dia x 8" long $59.00 $53.00 $48.40 Add
314-010 0.125" dia x 12" long $62.00 $56.00 $51.00 Add
314-012 0.125" dia x 18" long $67.00 $61.00 $57.00 Add
314-018 0.250" dia x 2” long $67.00 $61.00 $57.00 Add
314-020 0.250" dia x 4" long $63.00 $57.00 $52.00 Add
314-022 0.250" dia x 6" long $64.00 $58.00 $53.00 Add
314-024 0.250" dia x 8" long $65.00 $59.00 $55.00 Add
314-026 0.250" dia x 12" long $66.00 $60.00 $56.00 Add
314-028 0.250" dia x 18" long $67.00 $61.00 $56.00 Add
