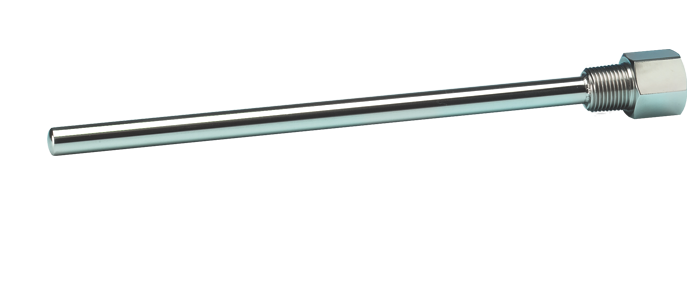

Stainless Steel Thermowells

view larger image
We offer a variety of stainless steel welded construction thermowells which are ideal for use with our 0.250” diameter Thermocouple or Pt100 sensors. They are ideal for applications where the removal of the sensor could prove complicated such as on a vessel, pipe or tank. They are 0.5”O.D. and are available with a 1/2” NPT taper process entry thread and 1/4” NPT parallel sensor entry thread. Immersion length (under the thread) is either 3.25” (to suit our 6” long sensors), 9.25” (for 12” long sensors), 15.25” (for 18” long sensors) or 33.25” (for 36” long sensors). Use a 1/4” NPT stainless steel fitting to attach the sensor to the thermowell. Welding bushings are also available
  • Available in 3.25”, 9.25”, 15.25” and 33.25” insertion lengths for use respectively with 6”, 12”, 18” and 36” long temperature sensors
  • Male Thread: 1/2" NPT
  • Female Thread: 1/4" NPT
  • Sheath material: 316 Stainless Steel
  • 1/2” NPT female welding bushings are available separately
  • Operating range: -100ºF to 1472ºF (-75ºC to +800ºC)
The following types are available:
Stainless Steel Thermowell For Use With our From Stock 0.250" Sensors
Order Code Description 1 - 4 5 - 9 10 - 19 Buy
284-610 3.25" insertion for 6" long sensors $69.00 $63.00 $57.00 Add
284-618 9.25" insertion for 12" long sensors $86.00 $78.00 $72.00 Add
284-626 15.25" insertion for 18" long sensors $150.00 $136.00 $125.00 Add
284-632 33.25" insertion for 36" long sensors $216.00 $197.00 $181.00 Add
284-640 1/2 in NPT female Welding Bush $26.40 $24.10 $22.10 Add
675-493 1/4" NPT stainless steel fitting to suit a 0.250" sensor $14.00 $12.80 $11.70 Add
784-100 Standard Heat Transfer Compound - 1.18 fl ozs (265°F) $67.00 $61.00 $57.00 Add
784-150 Plus Heat Transfer Compound - 1.69 fl ozs (390°F) $150.00 $136.00 $126.00 Add
675-616 Spare St/Steel Olive For 0.250" Fitting $2.60 $2.50 $2.20 Add
875-360 Spare PTFE Olive For 0.250" Fitting $4.60 $4.20 $3.90 Add
