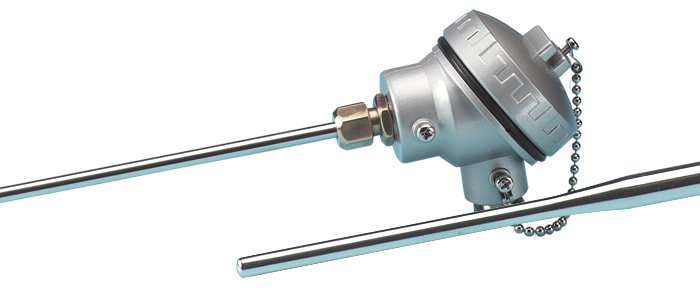

Swaged Mineral Insulated Thermocouple with IP67 Miniature Weatherproof Head
A unique fast response, high strength, low cost solution to many problematical temperature measurement applications. Rugged large diameter with a low thermal mass reduced tip provides for incredibly fast response. They have insulated junctions to prevent earth loops and can be formed to shape to suit particular applications without impairing performance. A small weatherproof die cast alloy head is incorporated and is ideal where a heavy duty connection with cable is to be made near the sensor. A variety of extension cables and adjustable compression fittings can be found in this catalog to complement this product. Do remember to select compression fittings for the larger diameter on the sensor.
- Thermocouple types K, T, J or N available
- Variety of lengths and diameters available
- Sheath Material: Type K - Inconel 600, Type T or J - 304 Stainless Steel Sheath and Type N which has a Nicrotherm DTM sheath
- The swaged tip part of the sensor is approximately 2” long. This dimension is nominal due to the nature of swaging.
- The operating range of these sensors is shown in the order code boxes
- Insulated Junction
- Terminated in an IP67 weatherproof die cast alloy head rated to 275ºF
- The maximum operating temperature is dependant on diameter and environmental factors, further guidance is available here.
The following types are available:
