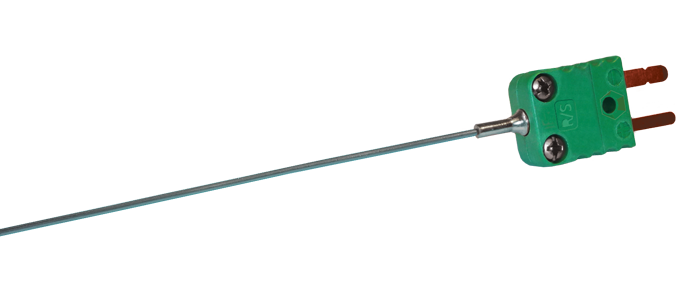

Platinum / Rhodium Sheathed Thermocouple with Miniature Plug
This new selection of Type S, R and B thermocouples are ideal for use in high temperature environments where standard sheath materials are unsuitable due to inaccuracies caused by contamination of the wire conductors. They have insulated junctions to prevent earth loops and a mineral insulated construction enables these sensors to be formed to shape to suit particular applications without impairing performance. Termination is in a miniature flat pin plug which is compatible with the miniature thermocouple jacks available in this catalog. A variety of extension cables and adjustable compression fittings can also be found in this catalog to complement this product.
- Thermocouple types S, R and B available
- Sheath Material: Platinum 10% Rhodium
- Maximum temperature: 2550ºF
- Insulated Junction
- Terminated in a miniature thermocouple plug rated to 275ºF
- The maximum operating temperature is dependant on diameter and environmental factors, further guidance is available here.
The following types are available:
| Order Code |
Description |
1 - 9
|
10 - 24
|
25 - 49
|
Buy |
| 207-882 |
0.062" dia x 6" long |
$1,227.00 |
$1,119.00 |
$1,023.00 |
Add
|
| 270-884 |
0.062" dia x 12" long |
$2,249.00 |
$2,050.00 |
$1,877.00 |
Add
|
| 270-886 |
0.062" dia x 18" long |
$3,532.00 |
$3,219.00 |
$2,946.00 |
Add
|
| 207/888 |
0.062" dia x 36" long |
$6,828.00 |
$6,224.00 |
$5,697.00 |
Add
|
| 207-890 |
0.062" dia x 72" long |
$13,249.00 |
$12,077.00 |
$11,053.00 |
Add
|
| 524-128 |
Matching Type SX/RX Jack |
$3.70 |
$3.40 |
$3.10 |
Add
|
| Order Code |
Description |
1 - 9
|
10 - 24
|
25 - 49
|
Buy |
| 207-872 |
0.062" dia x 6" long |
$1,227.00 |
$1,119.00 |
$1,023.00 |
Add
|
| 207-874 |
0.062" dia x 12" long |
$2,249.00 |
$2,050.00 |
$1,877.00 |
Add
|
| 207-876 |
0.062" dia x 18" long |
$3,532.00 |
$3,219.00 |
$2,946.00 |
Add
|
| 207-878 |
0.062" dia x 36" long |
$6,828.00 |
$6,224.00 |
$5,697.00 |
Add
|
| 207-880 |
0.062" dia x 72" long |
$13,249.00 |
$12,077.00 |
$11,053.00 |
Add
|
| 524-128 |
Matching Type SX/RX Jack |
$3.70 |
$3.40 |
$3.10 |
Add
|
| Order Code |
Description |
1 - 9
|
10 - 24
|
25 - 49
|
Buy |
| 207-850 |
0.062" dia x 6" long |
$1,352.00 |
$1,232.00 |
$1,128.00 |
Add
|
| 207-855 |
0.062" dia x 12" long |
$2,445.00 |
$2,228.00 |
$2,040.00 |
Add
|
| 207-860 |
0.062" dia x 18" long |
$3,906.00 |
$3,560.00 |
$3,259.00 |
Add
|
| 207-865 |
0.062" dia x 36" long |
$7,553.00 |
$6,885.00 |
$6,302.00 |
Add
|
| 207-870 |
0.062" dia x 72" long |
$14,848.00 |
$13,534.00 |
$12,388.00 |
Add
|
| 724-192 |
Matching Type BX Jack |
$3.70 |
$3.40 |
$3.10 |
Add
|
