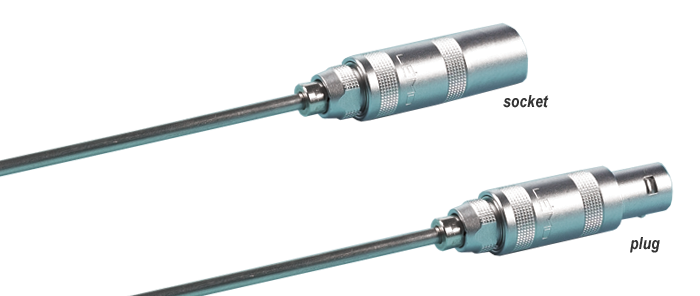

Mineral Insulated Thermocouple with a Size 1 Lemo Connector

view larger image
These semi rigid thermocouples are ideal for all applications from simple temperature measurement to more arduous environments. They have insulated junctions to prevent earth loops and can be formed to shape to suit particular applications without impairing performance. A Size 1 Lemo style plug or jack is incorporated and is compatible with the mating Lemo style connectors available in this catalog. A variety of extension cables and adjustable compression fittings can also be found in this catalog to complement this product.
  • Thermocouple types K or, T
  • Variety of lengths and diameters available
  • Sheath Material: Type K - 304 Stainless Steel , Type T - 304 Stainless Steel
  • Insulated Junction
  • Terminated in a Size 1 Lemo style plug or jack
  • The maximum operating temperature is dependant on diameter and environmental factors, further guidance is available here.
The following types are available:
Type K - 304 Stainless Steel Sheath (1650°F)
Order Code Description 1 - 9 10 - 24 25 - 49 Buy
207-500 0.062" dia x 6" long with size 1 Lemo Plug $114.00 $103.00 $95.00 Add
207-501 0.062" dia x 6" long with size 1 Lemo Jack $114.00 $103.00 $95.00 Add
207-505 0.062" dia x 12" long with size 1 Lemo Plug $114.00 $104.00 $96.00 Add
207-506 0.062" dia x 12" long with size 1 Lemo Jack $114.00 $104.00 $96.00 Add
207-510 0.062" dia x 18" long with size 1 Lemo Plug $115.00 $105.00 $96.00 Add
207-511 0.062" dia x 18" long with size 1 Lemo Jack $115.00 $105.00 $96.00 Add
207-515 0.062" dia x 36" long with size 1 Lemo Plug $119.00 $109.00 $99.00 Add
207-516 0.062" dia x 36" long with size 1 Lemo Jack $119.00 $109.00 $99.00 Add
207-520 0.062" dia x 72" long with size 1 Lemo Plug $125.00 $113.00 $103.00 Add
207-521 0.062" dia x 72" long with size 1 Lemo Jack $125.00 $113.00 $103.00 Add
207-525 0.125" dia x 6" long with size 1 Lemo Plug $114.00 $103.00 $95.00 Add
207-526 0.125" dia x 6" long with size 1 Lemo Jack $114.00 $103.00 $95.00 Add
207-530 0.125" dia x 12" long with size 1 Lemo Plug $114.00 $104.00 $96.00 Add
207-531 0.125" dia x 12" long with size 1 Lemo Jack $114.00 $104.00 $96.00 Add
207-535 0.125" dia x 18" long with size 1 Lemo Plug $115.00 $105.00 $96.00 Add
207-536 0.125" dia x 18" long with size 1 Lemo Jack $115.00 $105.00 $96.00 Add
207-540 0.125" dia x 36" long with size 1 Lemo Plug $119.00 $109.00 $99.00 Add
207-541 0.125" dia x 36" long with size 1 Lemo Jack $119.00 $109.00 $99.00 Add
207-545 0.125" dia x 72" long with size 1 Lemo Plug $125.00 $113.00 $103.00 Add
207-546 0.125" dia x 72" long with size 1 Lemo Jack $125.00 $113.00 $103.00 Add
207-700 Matching Lemo Jack $41.80 $38.20 $34.90 Add
207-701 Matching Lemo Plug $41.80 $38.20 $34.90 Add
Type T - 304 Stainless Steel Sheath (750°F)
Order Code Description 1 - 9 10 - 24 25 - 49 Buy
207-550 0.062" dia x 6" long with size 1 Lemo Plug $114.00 $103.00 $95.00 Add
207-551 0.062" dia x 6" long with size 1 Lemo Jack $114.00 $103.00 $95.00 Add
207-555 0.062" dia x 12" long with size 1 Lemo Plug $114.00 $104.00 $96.00 Add
207-556 0.062" dia x 12" long size 1 Lemo Jack $114.00 $104.00 $96.00 Add
207-560 0.062" dia x 18" long with size 1 Lemo Plug $115.00 $105.00 $96.00 Add
207-561 0.062" dia x 18" long size 1 Lemo Jack $115.00 $105.00 $96.00 Add
207-565 0.062" dia x 36" long with size 1 Lemo Plug $119.00 $109.00 $99.00 Add
207-566 0.062" dia x 36" long size 1 Lemo Jack $119.00 $109.00 $99.00 Add
207-570 0.062" dia x 72" long with size 1 Lemo Plug $125.00 $113.00 $103.00 Add
207-571 0.062" dia x 72" long size 1 Lemo Jack $125.00 $113.00 $103.00 Add
207-575 0.125" dia x 6" long with size 1 Lemo Plug $114.00 $103.00 $95.00 Add
207-576 0.125" dia x 6" long size 1 Lemo Jack $114.00 $103.00 $95.00 Add
207-580 0.125" dia x 12" long with size 1 Lemo Plug $114.00 $104.00 $96.00 Add
207-581 0.125" dia x 12" long size 1 Lemo Jack $114.00 $104.00 $96.00 Add
207-585 0.125" dia x 18" long with size 1 Lemo Plug $115.00 $105.00 $96.00 Add
207-586 0.125" dia x 18" long size 1 Lemo Jack $115.00 $105.00 $96.00 Add
207-590 0.125" dia x 36" long with size 1 Lemo Plug $119.00 $109.00 $99.00 Add
207-591 0.125" dia x 36" long size 1 Lemo Jack $119.00 $109.00 $99.00 Add
207-600 0.125" dia x 72" long with size 1 Lemo Plug $125.00 $113.00 $103.00 Add
207-601 0.125" dia x 72" long size 1 Lemo Jack $125.00 $113.00 $103.00 Add
207-700 Matching Lemo Jack $41.80 $38.20 $34.90 Add
207-701 Matching Lemo Plug $41.80 $38.20 $34.90 Add
