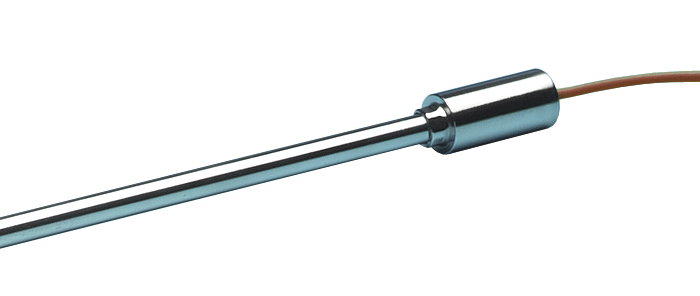

0.188” and 0.250” dia Mineral Insulated Thermocouple with Pot Seal and Cable

view larger image
These semi rigid thermocouples are ideal for all applications from simple temperature measurement to more arduous environments. They have insulated junctions to prevent earth loops and can be formed to shape to suit particular applications without impairing performance. A potting adaptor which allows the transition to 36” PVC insulated leads is supplied as standard. A variety of extension cables and adjustable compression fittings can be found in this catalog to complement this product.
  • Thermocouple types K, T, J or N available
  • Available in 0.188” and 0.250” diameters in a variety of lengths
  • Sheath Material: Type K - 304 Stainless Steel or Inconel 600®, Type T or J - 304 Stainless Steel and Type N which has a Nicrotherm DTM sheath
  • The operating range of these sensors is shown in the order code boxes
  • Insulated Junction
  • Leads: 36” PVC insulated
  • Terminated in a potting adaptor 0.5” diameter x 1.25” long rated to 220ºF
  • The maximum operating temperature is dependant on diameter and environmental factors, further guidance is available here.
The following types are available:
Type K - 304 Stainless Steel Sheath (1650ºF)
Order Code Description 1 - 9 10 - 24 25 - 49 Buy
208-380 0.188" dia x 6" long $28.90 $26.40 $24.10 Add
208-383 0.188" dia x 12" long $31.30 $28.60 $26.10 Add
208-386 0.188" dia x 18" long $34.00 $31.00 $28.40 Add
208-389 0.188" dia x 36" long $41.30 $37.70 $34.60 Add
208-392 0.188" dia x 72" long $57.00 $51.00 $46.30 Add
205-031 0.250" dia x 6" long $30.20 $27.50 $25.30 Add
205-034 0.250" dia x 12" long $32.40 $29.70 $27.20 Add
205-037 0.250" dia x 18" long $35.10 $32.00 $29.40 Add
205-040 0.250" dia x 36" long $44.00 $40.20 $36.80 Add
205-043 0.250" dia x 72" long $61.00 $56.00 $51.00 Add
Type K - Inconel 600® Sheath (2010ºF)
Order Code Description 1 - 9 10 - 24 25 - 49 Buy
208-410 0.188" dia x 6" long $28.90 $26.40 $24.10 Add
208-413 0.188" dia x 12" long $31.30 $28.60 $26.10 Add
208-416 0.188" dia x 18" long $34.00 $31.00 $28.40 Add
208-419 0.188" dia x 36" long $60.00 $55.00 $49.60 Add
208-422 0.188" dia x 72" long $79.00 $72.00 $66.00 Add
205-083 0.250" dia x 6" long $30.20 $27.50 $25.30 Add
205-086 0.250" dia x 12" long $32.40 $29.70 $27.20 Add
205-089 0.250" dia x 18" long $35.10 $32.00 $29.40 Add
205-092 0.250" dia x 36" long $71.00 $65.00 $59.00 Add
205-095 0.250" dia x 72" long $108.00 $99.00 $91.00 Add
Type T - 304 Stainless Steel Sheath (750ºF)
Order Code Description 1 - 9 10 - 24 25 - 49 Buy
208-440 0.188" dia x 6" long $28.90 $26.40 $24.10 Add
208-443 0.188" dia x 12" long $31.30 $28.60 $26.10 Add
208-446 0.188" dia x 18" long $34.00 $31.00 $28.40 Add
208-449 0.188" dia x 36" long $41.30 $37.70 $34.60 Add
208-452 0.188" dia x 72" long $57.00 $51.00 $46.30 Add
205-140 0.250" dia x 6" long $30.20 $27.50 $25.30 Add
205-143 0.250" dia x 12" long $32.40 $29.70 $27.20 Add
205-146 0.250" dia x 18" long $35.10 $32.00 $29.40 Add
205-149 0.250" dia x 36" long $44.00 $40.20 $36.80 Add
205-152 0.250" dia x 72" long $61.00 $56.00 $51.00 Add
Type J - 304 Stainless Steel Sheath (1250ºF)
Order Code Description 1 - 9 10 - 24 25 - 49 Buy
208-490 0.188" dia x 6" long $28.90 $26.40 $24.10 Add
208-493 0.188" dia x 12" long $31.30 $28.60 $26.10 Add
208-496 0.188" dia x 18" long $34.00 $31.00 $28.40 Add
208-499 0.188" dia x 36" long $41.30 $37.70 $34.60 Add
208-502 0.188" dia x 72" long $57.00 $51.00 $46.30 Add
205-190 0.250" dia x 6" long $30.20 $27.50 $25.30 Add
205-193 0.250" dia x 12" long $32.40 $29.70 $27.20 Add
205-196 0.250" dia x 18" long $35.10 $32.00 $29.40 Add
205-199 0.250" dia x 36" long $44.00 $40.20 $36.80 Add
205-202 0.250" dia x 72" long $61.00 $56.00 $51.00 Add
