0.040”, 0.062” and 0.125” dia Mineral Insulated Thermocouple with Pot Seal and Cable

view larger image

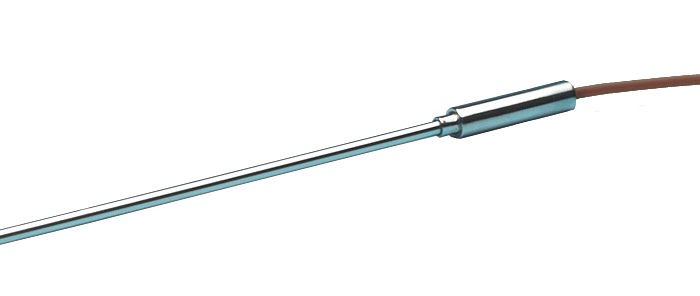

These semi rigid thermocouples are ideal for all applications from simple temperature measurement to more arduous environments. They have insulated junctions to prevent earth loops and can be formed to shape to suit particular applications without impairing performance. A potting adaptor which allows the transition to insulated leads is supplied as standard. A variety of extension cables and adjustable compression fittings can be found in this catalog to complement this product.
  • Thermocouple types K, T, J or N or S available
  • Available in 0.010", 0.020", 0.040”, 0.062” and 0.125” diameters in a variety of lengths
  • Various sheath materials available - see below
  • Insulated Junction
  • Leads: 0.010” or 0.020”: 72” PFA insulated
    0.040”, 0.062” and 0.125”: 36” PVC insulated
  • Terminated in a potting adaptor 0.250" diameter x 1.25" long rated to 185ºF (0.010” and 0.020”) or 220ºF (0.040”, 0.062” and 0.125”)
  • The maximum operating temperature is dependant on diameter and environmental factors, further guidance is available here.
  • Type S sensors shown on this page are not recommended for use in excess of 1560ºF
The following types are available:
Type K - 316 Stainless Steel Sheath (1470ºF) and 304 Stainless Steel Sheath (1650ºF)
Order Code Description 1 - 9 10 - 24 25 - 49 Buy
208-053 0.040" dia x 6" long – 304 St./St. $38.70 $35.40 $32.40 Add
208-056 0.040" dia x 12" long – 304 St./St. $39.70 $36.20 $33.10 Add
208-059 0.040" dia x 18" long – 304 St./St. $40.30 $37.00 $33.80 Add
208-062 0.040" dia x 36" long – 304 St./St. $43.00 $39.30 $36.00 Add
208-065 0.040" dia x 72" long – 304 St./St. $49.80 $45.50 $41.60 Add
205-001 0.062" dia x 6" long – 304 St./St. $28.80 $26.30 $24.10 Add
205-004 0.062" dia x 12" long – 304 St./St. $29.60 $27.00 $24.90 Add
205-007 0.062" dia x 18" long – 304 St./St. $30.20 $27.50 $25.30 Add
205-010 0.062" dia x 36" long – 304 St./St. $32.90 $30.00 $27.50 Add
205-013 0.062" dia x 72" long – 304 St./St. $40.10 $36.60 $33.50 Add
205-016 0.125" dia x 6" long – 304 St./St. $31.60 $28.80 $26.40 Add
205-019 0.125" dia x 12" long – 304 St./St. $32.40 $29.70 $27.20 Add
205-022 0.125" dia x 18" long – 304 St./St. $34.60 $31.60 $28.90 Add
205-025 0.125" dia x 36" long – 304 St./St. $38.60 $35.30 $32.30 Add
205-028 0.125" dia x 72" long – 304 St./St. $46.10 $42.00 $38.40 Add
Type K - Inconel 600® Sheath (2010ºF)
Order Code Description 1 - 9 10 - 24 25 - 49 Buy
208-110 0.040" dia x 6" long – Inconel 600 $38.70 $35.40 $32.40 Add
208-113 0.040" dia x 12" long – Inconel 600 $39.70 $36.20 $33.10 Add
208-116 0.040" dia x 18" long – Inconel 600 $40.30 $37.00 $33.80 Add
208-119 0.040" dia x 36" long – Inconel 600 $43.00 $39.30 $36.00 Add
208-122 0.040" dia x 72" long – Inconel 600 $49.80 $45.50 $41.60 Add
205-050 0.062" dia x 6" long – Inconel 600 $28.80 $26.30 $24.10 Add
205-053 0.062" dia x 12" long – Inconel 600 $29.60 $27.00 $24.90 Add
205-056 0.062" dia x 18" long – Inconel 600 $30.20 $27.50 $25.30 Add
205-059 0.062" dia x 36" long – Inconel 600 $32.90 $30.00 $27.50 Add
205-062 0.062" dia x 72" long – Inconel 600 $40.10 $36.60 $33.50 Add
205-065 0.125" dia x 6" long – Inconel 600 $31.60 $28.80 $26.40 Add
205-068 0.125" dia x 12" long – Inconel 600 $32.40 $29.70 $27.20 Add
205-071 0.125" dia x 18" long – Inconel 600 $34.60 $31.60 $28.90 Add
205-074 0.125" dia x 36" long – Inconel 600 $38.60 $35.30 $32.30 Add
205-077 0.125" dia x 72" long – Inconel 600 $49.50 $45.20 $41.40 Add
Type T - 316 and 304 Stainless Steel Sheath (750ºF)
Order Code Description 1 - 9 10 - 24 25 - 49 Buy
208-201 0.040" dia x 6" long – 304 St./St. $38.70 $35.40 $32.40 Add
208-204 0.040" dia x 12" long – 304 St./St. $39.70 $36.20 $33.10 Add
208-207 0.040" dia x 18" long – 304 St./St. $40.30 $37.00 $33.80 Add
208-210 0.040" dia x 36" long – 304 St./St. $43.00 $39.30 $36.00 Add
208-213 0.040" dia x 72" long – 304 St./St. $49.80 $45.50 $41.60 Add
205-110 0.062" dia x 6" long – 304 St./St. $28.80 $26.30 $24.10 Add
205-113 0.062" dia x 12" long – 304 St./St. $29.60 $27.00 $24.90 Add
205-116 0.062" dia x 18" long – 304 St./St. $30.20 $27.50 $25.30 Add
205-119 0.062" dia x 36" long – 304 St./St. $32.90 $30.00 $27.50 Add
205-122 0.062" dia x 72" long – 304 St./St. $40.10 $36.60 $33.50 Add
205-125 0.125" dia x 6" long – 304 St./St. $31.60 $28.80 $26.40 Add
205-128 0.125" dia x 12" long – 304 St./St. $32.40 $29.70 $27.20 Add
205-131 0.125" dia x 18" long – 304 St./St. $34.60 $31.60 $28.90 Add
205-134 0.125" dia x 36" long – 304 St./St. $38.60 $35.30 $32.30 Add
205-137 0.125" dia x 72" long – 304 St./St. $46.10 $42.00 $38.40 Add
Type J - 316 and 304 Stainless Steel Sheath (1250ºF)
Order Code Description 1 - 9 10 - 24 25 - 49 Buy
208-250 0.040" dia x 6" long – 304 St./St. $38.70 $35.40 $32.40 Add
208-253 0.040" dia x 12" long – 304 St./St. $39.70 $36.20 $33.10 Add
208-256 0.040" dia x 18" long – 304 St./St. $40.30 $37.00 $33.80 Add
208-259 0.040" dia x 36" long – 304 St./St. $43.00 $39.30 $36.00 Add
208-262 0.040" dia x 72" long – 304 St./St. $49.80 $45.50 $41.60 Add
205-160 0.062" dia x 6" long – 304 St./St. $28.80 $26.30 $24.10 Add
205-163 0.062" dia x 12" long – 304 St./St. $29.60 $27.00 $24.90 Add
205-166 0.062" dia x 18" long – 304 St./St. $30.20 $27.50 $25.30 Add
205-169 0.062" dia x 36" long – 304 St./St. $32.90 $30.00 $27.50 Add
205-172 0.062" dia x 72" long – 304 St./St. $40.10 $36.60 $33.50 Add
205-175 0.125" dia x 6" long – 304 St./St. $31.60 $28.80 $26.40 Add
205-178 0.125" dia x 12" long – 304 St./St. $32.40 $29.70 $27.20 Add
205-181 0.125" dia x 18" long – 304 St./St. $34.60 $31.60 $28.90 Add
205-184 0.125" dia x 36" long – 304 St./St. $38.60 $35.30 $32.30 Add
205-187 0.125" dia x 72" long – 304 St./St. $46.10 $42.00 $38.40 Add
Type N - Nicrotherm DTM Sheath (2280ºF)
Order Code Description 1 - 9 10 - 24 25 - 49 Buy
208-310 0.040" dia x 6" long – Nicrotherm D $42.50 $38.80 $35.60 Add
208-313 0.040" dia x 12" long – Nicrotherm D $46.20 $42.10 $38.50 Add
208-316 0.040" dia x 18" long – Nicrotherm D $48.00 $43.80 $40.10 Add
208-319 0.040" dia x 36" long – Nicrotherm D $52.00 $47.30 $43.40 Add
208-322 0.040" dia x 72" long – Nicrotherm D $63.00 $57.00 $52.00 Add
205-210 0.062" dia x 6" long – Nicrotherm D $31.90 $29.00 $26.70 Add
205-213 0.062" dia x 12" long – Nicrotherm D $35.60 $32.60 $29.70 Add
205-216 0.062" dia x 18" long – Nicrotherm D $38.90 $35.60 $32.60 Add
205-219 0.062" dia x 36" long – Nicrotherm D $43.10 $39.40 $36.10 Add
205-222 0.062" dia x 72" long – Nicrotherm D $56.00 $51.00 $45.80 Add
205-225 0.125" dia x 6" long – Nicrotherm D $34.60 $31.60 $28.90 Add
205-228 0.125" dia x 12" long – Nicrotherm D $41.30 $37.70 $34.60 Add
205-231 0.125" dia x 18" long – Nicrotherm D $44.90 $40.90 $37.50 Add
205-234 0.125" dia x 36" long – Nicrotherm D $54.00 $48.40 $44.40 Add
205-237 0.125" dia x 72" long – Nicrotherm D $71.00 $64.00 $59.00 Add
Type S - Inconel 600® Sheath (1560ºF)
Order Code Description 1 - 9 10 - 24 25 - 49 Buy
208-610 0.040" dia x 12" long – Inconel 600 $202.00 $185.00 $169.00 Add
208-613 0.040" dia x 18" long – Inconel 600 $304.00 $278.00 $254.00 Add
208-616 0.040" dia x 36" long – Inconel 600 $555.00 $506.00 $464.00 Add
208-619 0.062" dia x 12" long – Inconel 600 $202.00 $185.00 $169.00 Add
208-622 0.062" dia x 18" long – Inconel 600 $304.00 $278.00 $254.00 Add
208-625 0.062" dia x 36" long – Inconel 600 $555.00 $506.00 $464.00 Add
