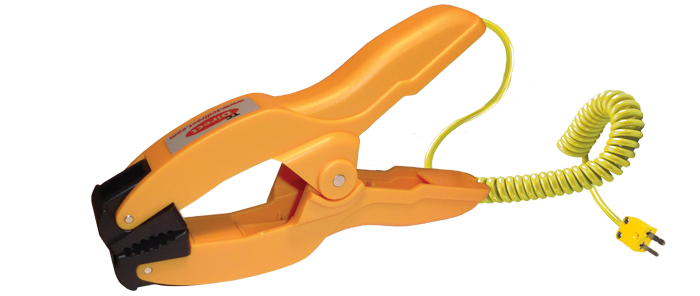

Spring Clamp Thermocouple

view larger image
This spring clamp sensor allows quick and easy temperature measurements of a variety of pipes and surfaces. They make direct contact for fast response.
  • Thermocouple type K
  • Clamps on objects from 0.125” to 1.75” in diameter or thickness
  • Grounded Junction
  • Leads: 36” PVC insulated coiled lead with miniature jack
  • Operating range: -58 to 750 deg. F. (Note: the yellow body is rated to 212°F while the jaws will withstand up to 750°F)
The following types are available:
Spring Clamp Thermocouple
Order Code Description 1 - 9 10 - 24 25 - 49 Buy
201-720 Type K Spring Clamp Thermocouple $104.00 $96.00 $87.00 Add
