High Temp Magnet Thermocouple

view larger image

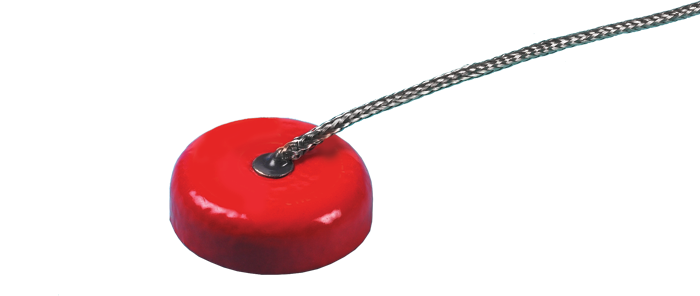

This versatile magnetic thermocouple is suitable for high temperature measurements on ferrous surfaces up to a maximum of 572ºF. The sensor is supplied with 72” of stainless steel braided fiberglass insulated cable.
  • Surface temperature measurement of ferrous materials
  • Thermocouple types K, T, J or N
  • Grounded Junction
  • Leads: 72” fiberglass insulated with stainless steel overbraid
  • Operating range: 14ºF to +572ºF (-10ºC to +300ºC)
  • Magnet Dimensions: 1.14” dia. X 0.33” thick
The following types are available:
High Thermocouple
Order Code Description 1 - 9 10 - 24 25 - 49 Buy
210-050 Hi Temp Magnet Thermocouple Type K $75.00 $69.00 $63.00 Add
210-055 Hi Temp Magnet Thermocouple Type J $75.00 $69.00 $63.00 Add
210-060 Hi Temp Magnet Thermocouple Type T $75.00 $69.00 $63.00 Add
210-065 Hi Temp Magnet Thermocouple Type N $75.00 $69.00 $63.00 Add
